Brand: |
none |
Address: |
Guangdong Shenzhen |
Min.Order: |
none |
Supply: |
none |
Valid until: |
Long Term |
Product Details

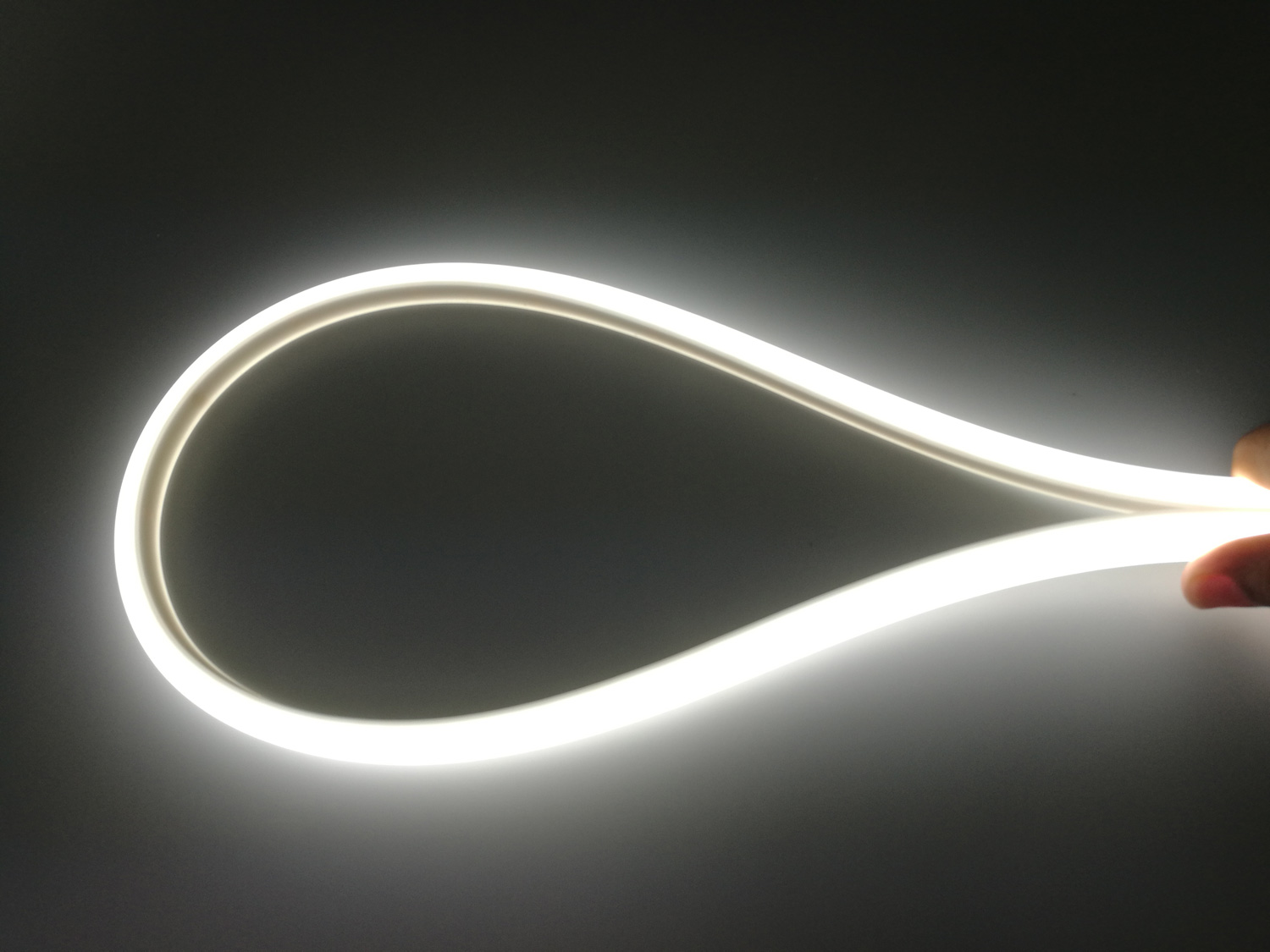

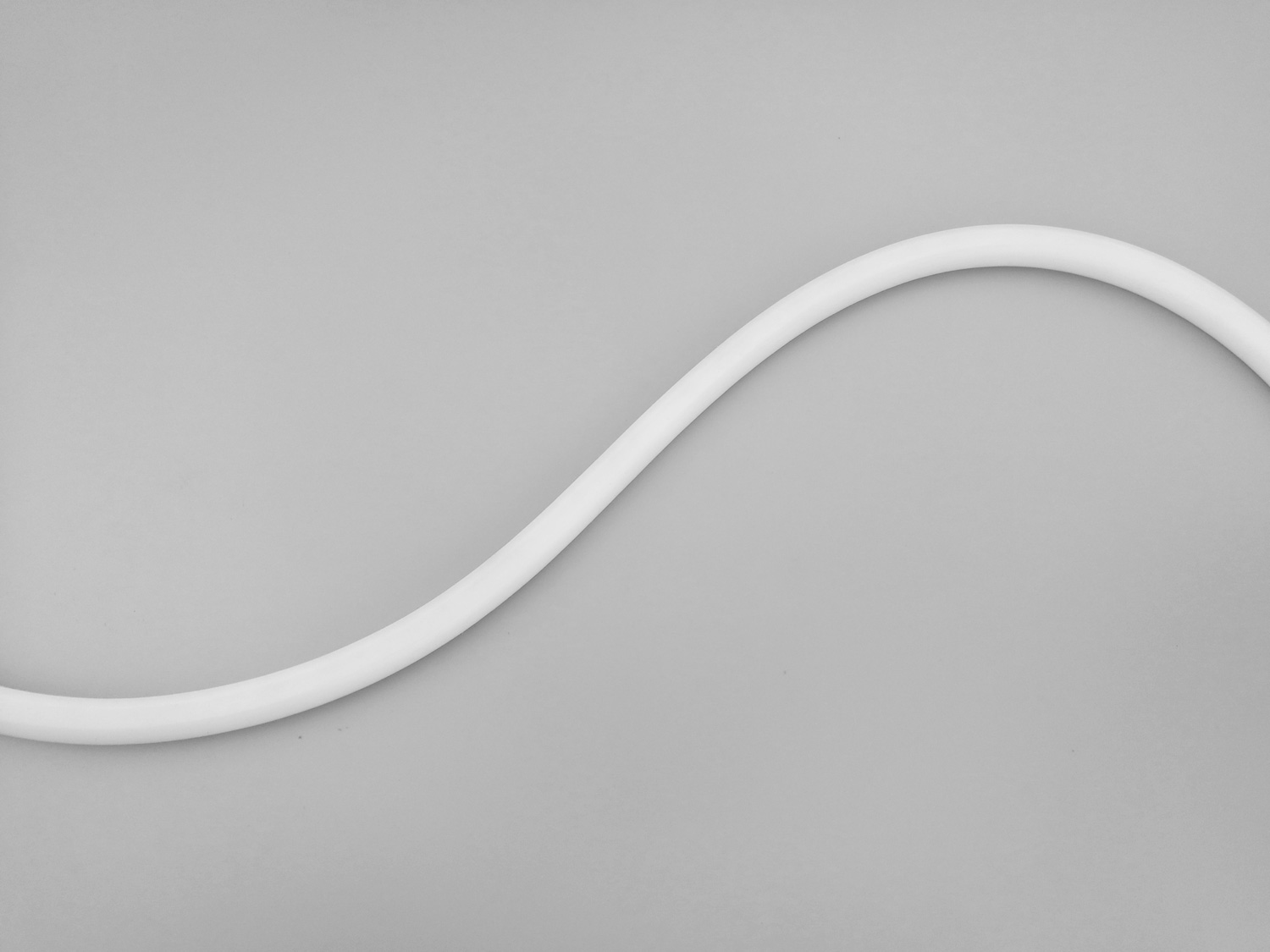

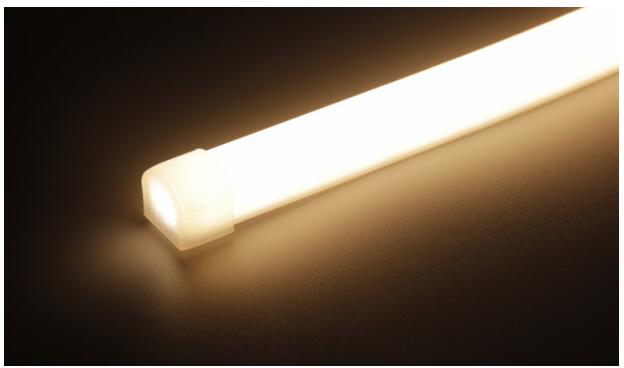

/ PRODUCT Description

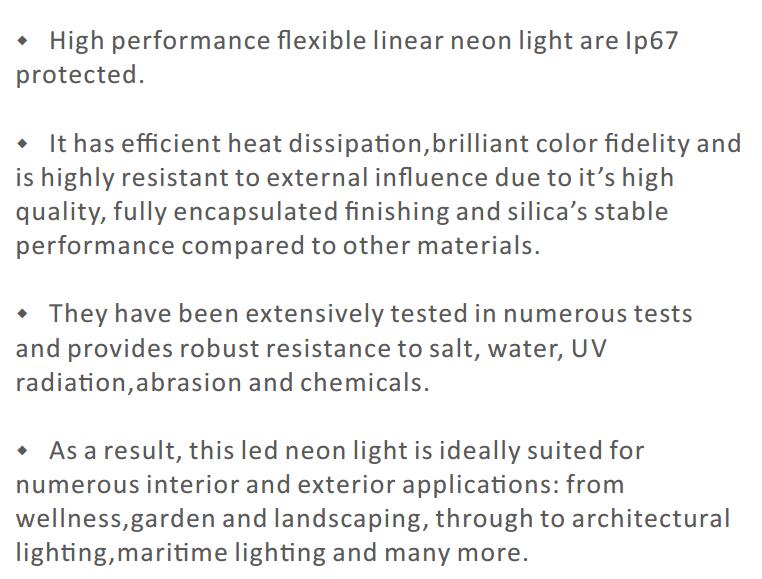

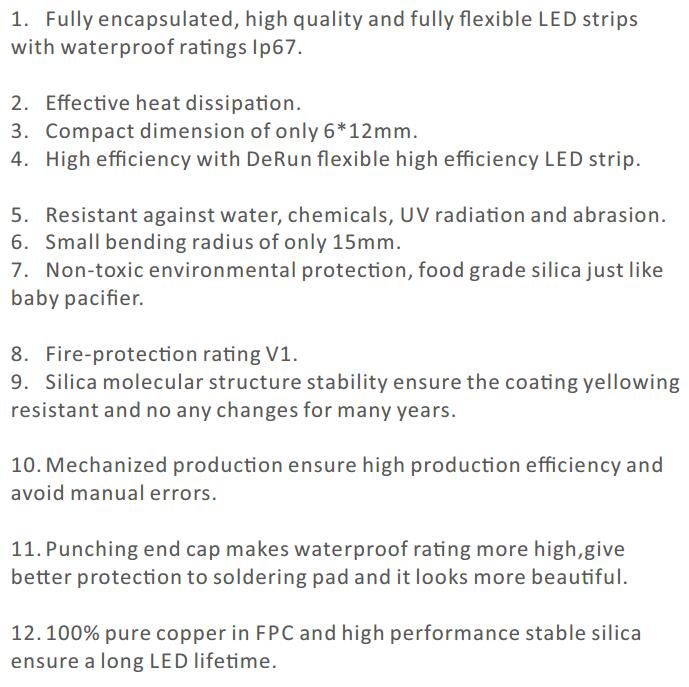

/ PRODUCT Features

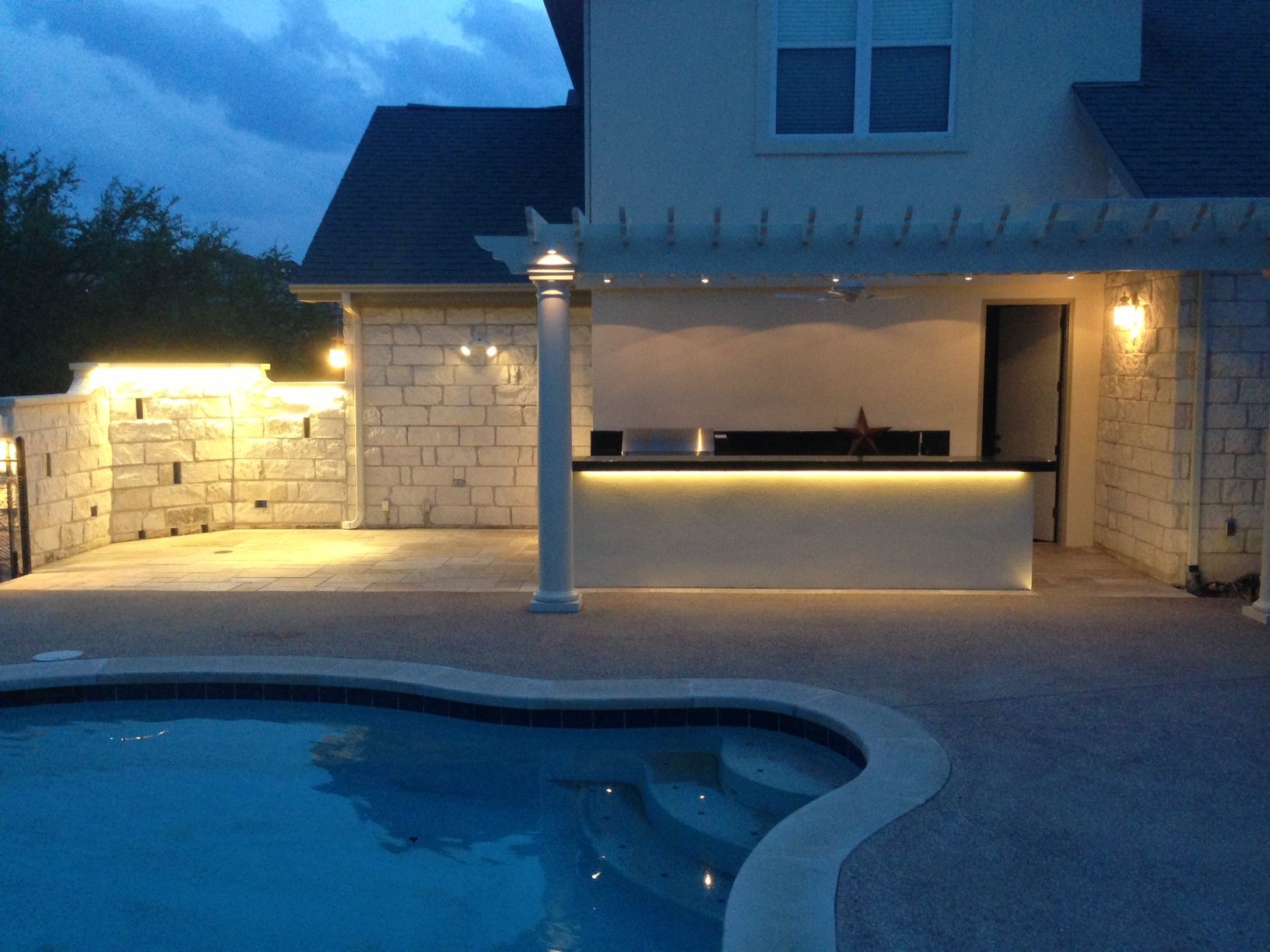

/ Application
Business premises lighting/Linear led lighting/Exhibition led lighting/Display led lighting/Bar led lighting/Home led lighting/Office led lighting/Led retail lighting/Accent led lighting/Pool led lighting/Architectural lighting/Led strip fixtures/Decorative lamp for outdoor lighting/ad. signs

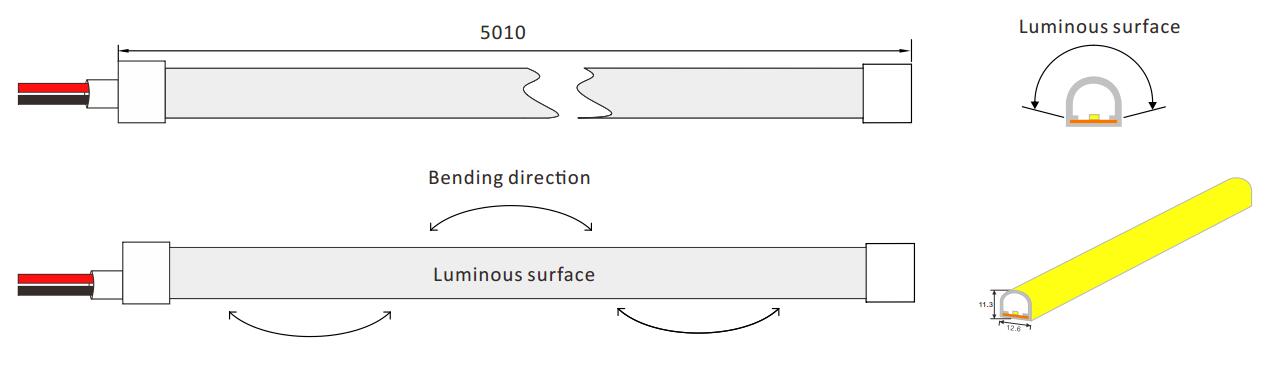

Dimension (mm)

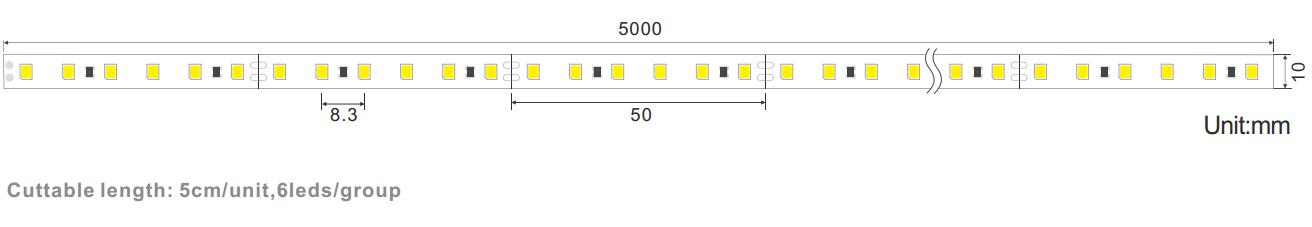

PCB Size
/ Parameter
Item No. | CCT | Length (mm) | LED QTY | Power (W/M) | Input voltage (V) | Lm/m | Beam angle | IP | CRI | Work Temperature | Warranty | Dimension |
LG10T1311-WW | 3000K | 1000 | 120 | 14 | DC24V | 900 | 170° | IP67 | 83 | -20~45℃ | 3 Years | 12.6*11.3mm |
LG10T1311-NW | 4000K | 1000 | 120 | 14 | DC24V | 950 | 170° | IP67 | 83 | -20~45℃ | 3 Years | 12.6*11.3mm |
LG10T1311-W | 6000K | 1000 | 120 | 14 | DC24V | 1000 | 170° | IP67 | 83 | -20~45℃ | 3 Years | 12.6*11.3mm |
LG10T1311-R | RED | 1000 | 120 | 14 | DC24V | / | 170° | IP67 | / | -20~45℃ | 3 Years | 12.6*11.3mm |
LG10T1311-G | GREEN | 1000 | 120 | 14 | DC24V | / | 170° | IP67 | / | -20~45℃ | 3 Years | 12.6*11.3mm |
LG10T1311-B | BLUE | 1000 | 120 | 14 | DC24V | / | 170° | IP67 | / | -20~45℃ | 3 Years | 12.6*11.3mm |
/ Accessories

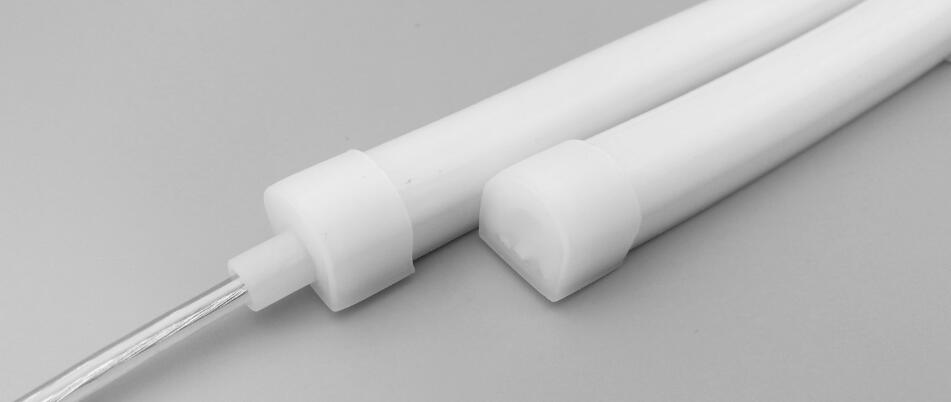

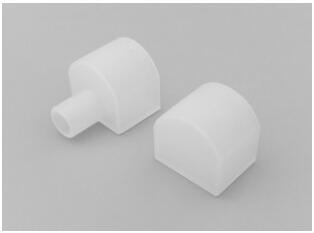

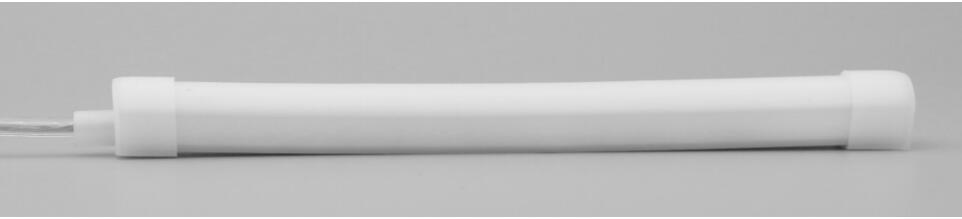

End caps

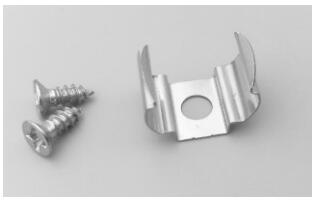

Install Clips
/ Installation instructions

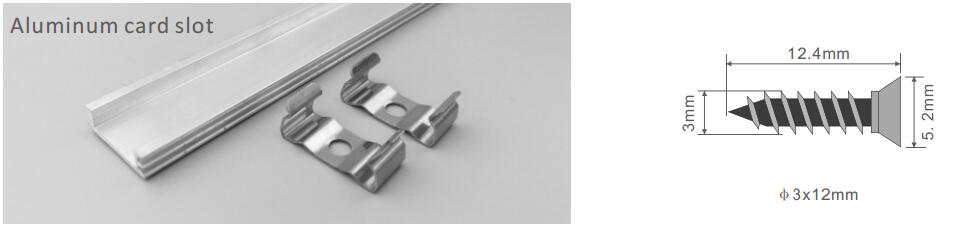

Method 1: Aluminum card slot installation

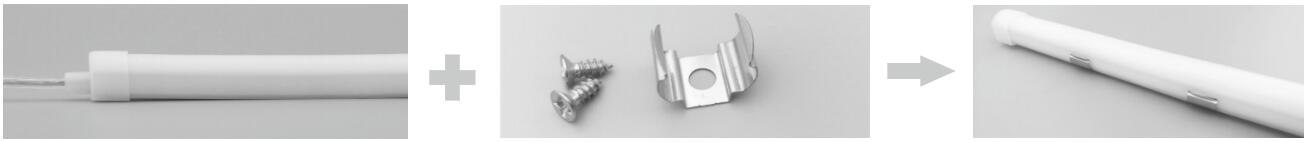

Method 2: Clips installation
Method 3: 3M adhesive on the back

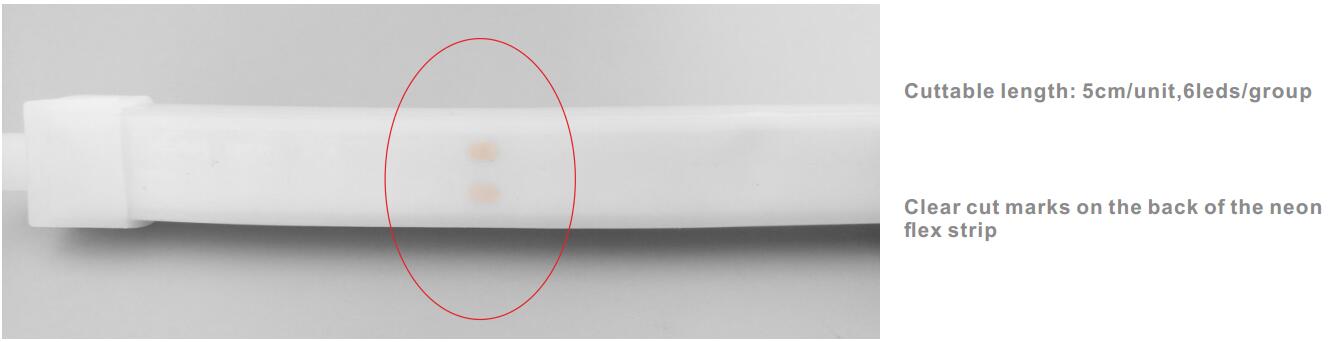

Cutting method

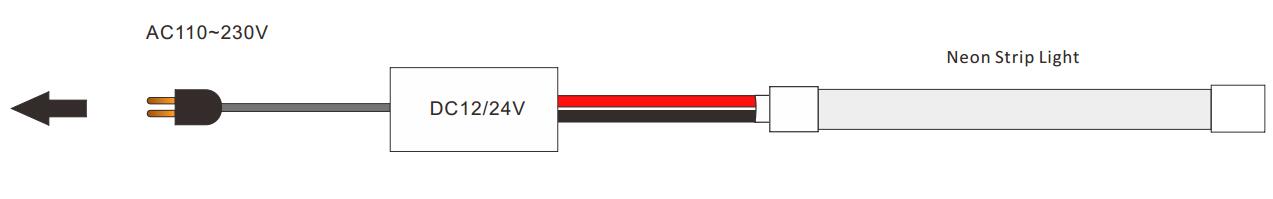

Wiring diagram
/ Packing
Different lengths are available!
Standard packing:
5m(16.4’) per roll. Gross weight: 0.55kg per roll. 10m(32.8’) per roll. Gross weight: 1.1kg per roll.
Type | ItemNO. | Neno Flex size | Carton size | Esdbag | Weight/Carton | Quanity/Carton |
Neon Strip | LG10T1311 | 26x26cm | 30x60x60cm | 28x28cm | 0.55kg | 12kg |

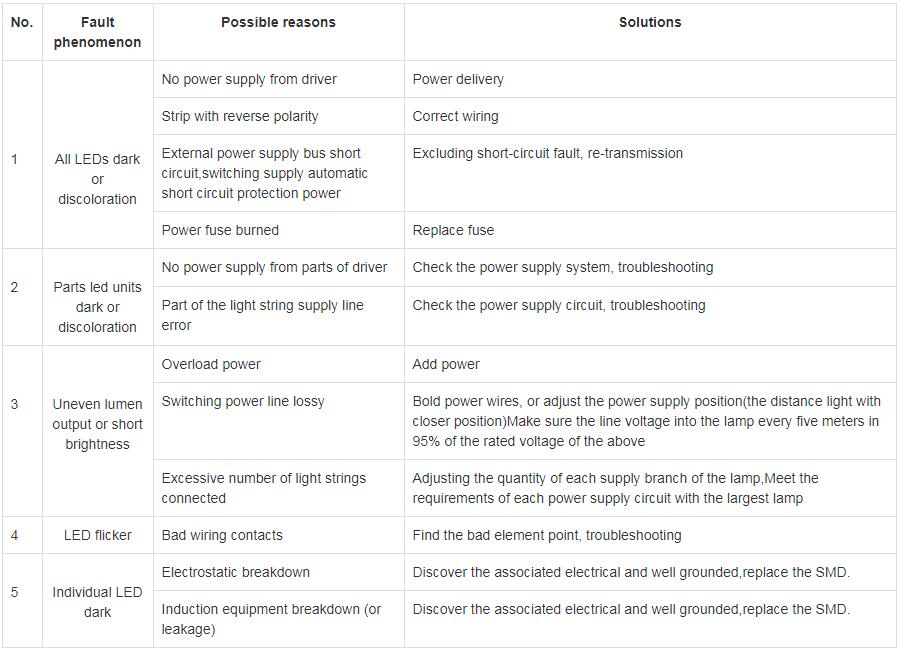

/ Fault inspection

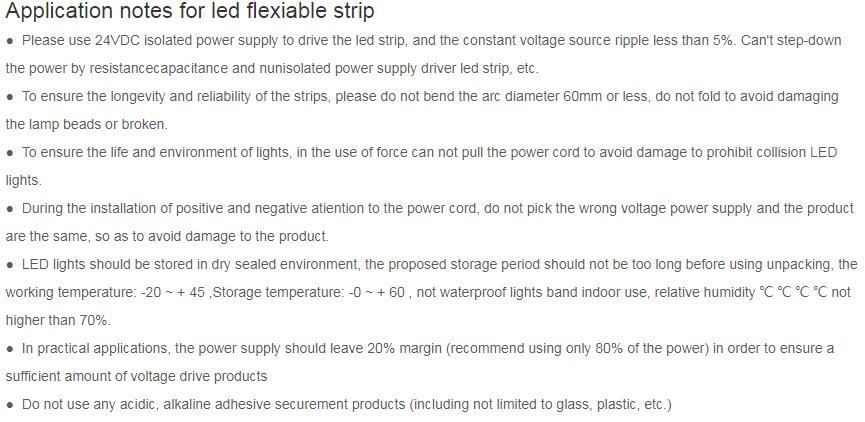

/ Disclaimer
Customer Reviews total 0 items
