Product Details

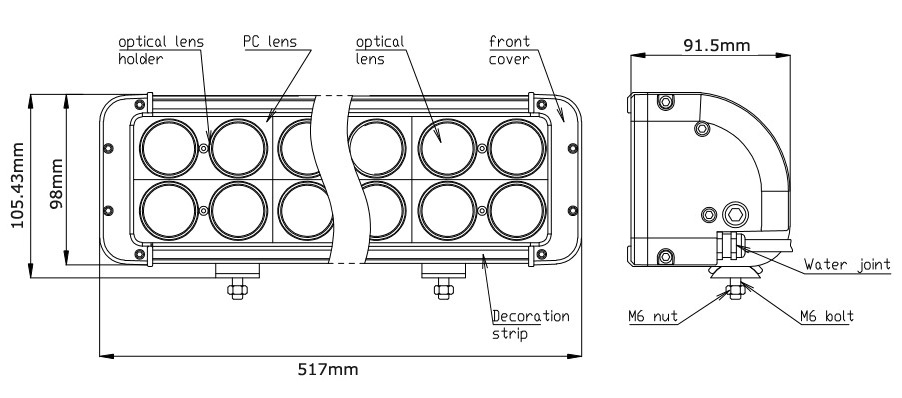

◆ Dimensional Drawing
◆ Specification
| Model | JC10218D-240W |
| Watt | 240W |
| Voltage | 9~60V DC |
| LED | 24 PCS*10W (Cree XM-L2 LED) |
| Material | Die-cast aluminum housing, PC lens |
| Size | 517*98*92 mm (21 inch) |
| Raw Lumens | 20650 LM |
| Optional Beam | Spot/Flood/Combo |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
Other single row light bars, please refer to JC10118A-240W, JC10118S-240W.
For the whole series of 10W LED light bar, please check here: JC10218D series.
JC10218D LED Light Bar Series
| MODEL | INCH | LED (PCS) | WATT | RAW LUMENS | EFFECTIVE LUMENS | SIZE(MM) | AMPS/12V | INPUT VOLTS | QTY/CTN |
| JC10218D-40W | 5" | 4 | 40W | 3440LM | 2580LM | 117*98*92 | 2.5 | 9-60V | 12 |
| JC10218D-80W | 8" | 8 | 80W | 6880LM | 5160LM | 197*98*92 | 5 | 9-60V | 6 |
| JC10218D-120W | 11" | 12 | 120W | 10320LM | 7740LM | 277*98*92 | 7.5 | 9-60V | 6 |
| JC10218D-200W | 17" | 20 | 200W | 17200LM | 12900LM | 437*98*92 | 12.5 | 9-60V | 4 |
| JC10218D-240W | 20" | 24 | 240W | 20640LM | 15480LM | 517*98*92 | 15 | 9-60V | 4 |

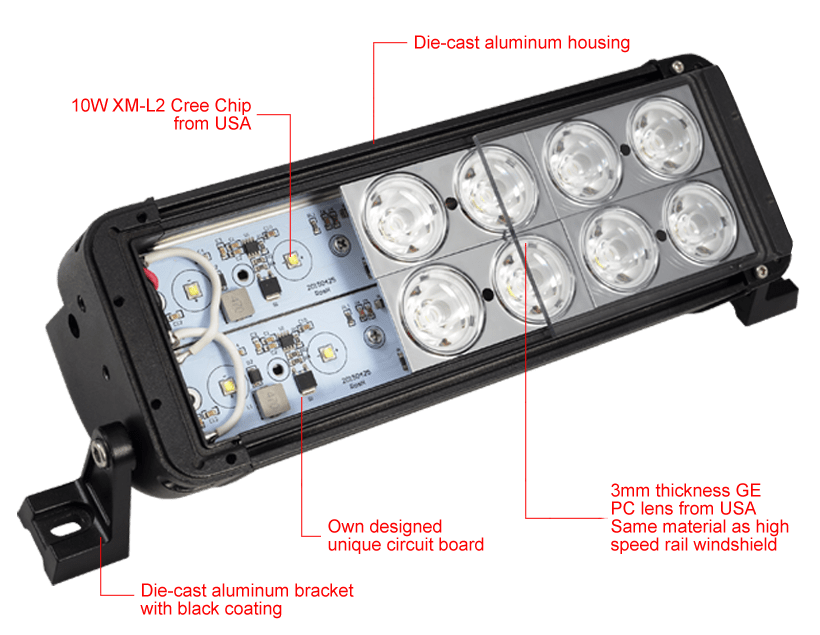

◆ Advantages
> High power super bright 10W Cree LED chips from USA, energy saving and longer life.
> Lamp cover adopted imported PC lens, high transmittance, anti high/low temperature burst.
> High quality die-cast aluminum housing, durable to withstand any harsh conditions.
> Advanced Vertical fin design for maximum heat dissipation.
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket.
> The high performance of tight waterproof, dust-proof, rust-proof, shockproof.
> 8 hours aging test.
> Longevity of offroad truck 4x4 light bar: More than 30,000 hours.
> CE, RoHS, IP67, EMC approved.
> 12 months warranty, free replacement for defective products.
PS: LED light bar for truck 4x4 Support OEM, ODM!
> Lamp cover adopted imported PC lens, high transmittance, anti high/low temperature burst.
> High quality die-cast aluminum housing, durable to withstand any harsh conditions.
> Advanced Vertical fin design for maximum heat dissipation.
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket.
> The high performance of tight waterproof, dust-proof, rust-proof, shockproof.
> 8 hours aging test.
> Longevity of offroad truck 4x4 light bar: More than 30,000 hours.
> CE, RoHS, IP67, EMC approved.
> 12 months warranty, free replacement for defective products.
PS: LED light bar for truck 4x4 Support OEM, ODM!
◆ Product Details
