Product Details

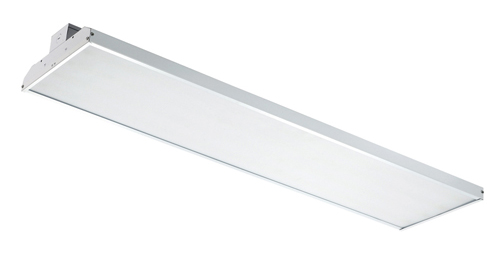

WAREHOUSES / FACTORY / GYMNASIUMS / DISPLAY CENTERS
It marries our best LED technologies with our most popular high bay product.
The result is high-performance,configurable LED luminaire.
That is ideal for warehousing, manufacturing,and gymnasiums.
■ ADVANCED OPTICS
Narrow and wide distributions available to meet both horizontal and vertical light level requirements.
Reflectors feature precision-formed optics utilizing premium materials.■ EMERGENCY BATTERY PACK
Optional factory-installed emergency battery pack in the back plate.
(nominal) for a minimum of 90 minutes.■ CONTROLS
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.
■ DIMMING
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.■ FINISHES
Standard fixture is powder-coated with white color.■ GLARE CONTROL
A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed.■ OPTIONAL WIRE GUARD
Optional wire guard protects fixture from environmental hazards. Factory- or field-installed.
Product features

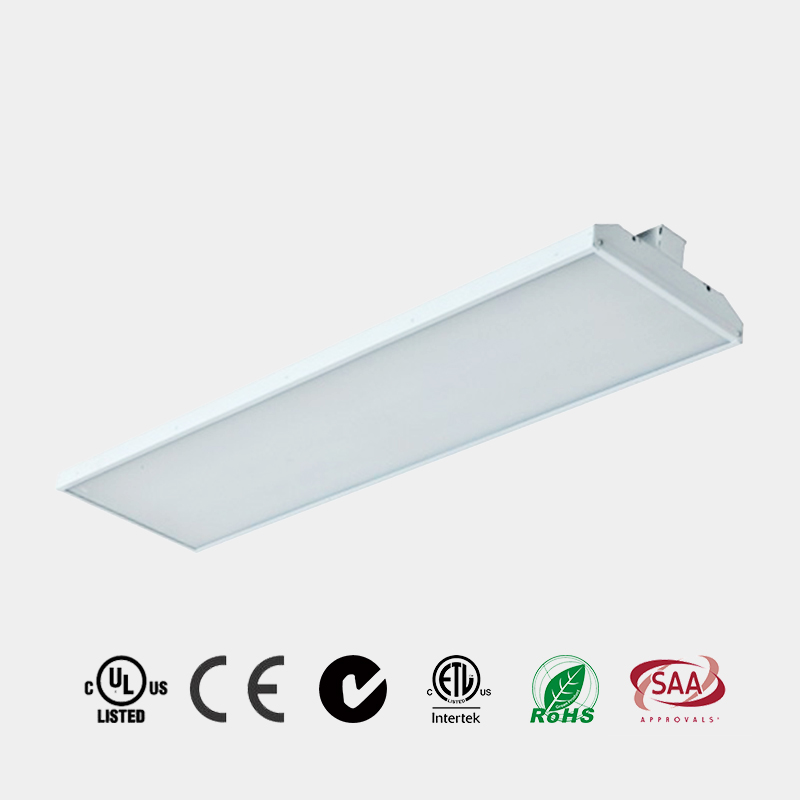

◪ ETL & DLC listed; With LM79 & LM80;
◪ 2ft:100W MAX & 220W MAX available; 4ft: 225W MAX & 325W MAX available;
◪ High luminous efficacy 130lm/w;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20% ;
◪ Installation: chain mounting
◪ Suitablefor dry/damp location;
◪ Designedfor warehouses, gymnasiums, and industrial spaces;
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years

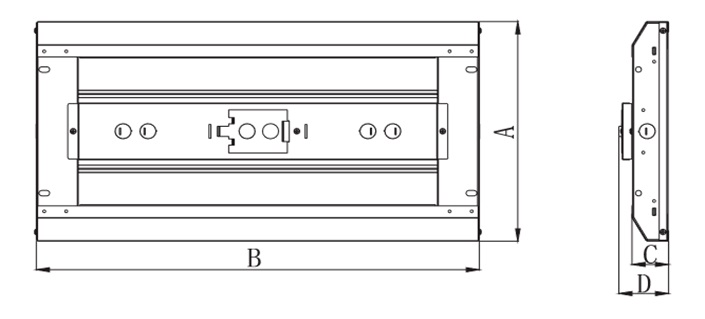

Product dimension
| Model No | B | C | D |
| HG-L225-80W/2ft | 23.82" | 1.97" | 2.68" |
| HG-L225-100W/2ft | 23.82" | 1.97" | 2.68" |
| HG-L225-140W/2ft | 23.82" | 1.97" | 2.68" |
| HG-L225-165W/2ft | 23.82" | 1.97" | 2.68" |
| HG-L225-165W/4ft | 45.87" | 1.97" | 2.68" |
| HG-L225-225W/4ft | 45.87" | 1.97" | 2.68" |
| HG-L225-320W/4ft | 45.87" | 1.97" | 2.68" |
Technical data
| Total Input Watt | 80W/2ft | 100W/2ft | 140W/2ft | 165W/2ft | 165W/4ft | 225W/4ft | 320W/4ft |
| SMD LED Chips Brand | Bridgelux | ||||||
| Calculated L70 | 50,000 hrs | ||||||
| Delivered Lumens | 10400 LM | 1300 LM | 18200 LM | 21450 LM | 21450 LM | 29250 LM | 41600 LM |
| Luminaire Efficacy Rating | 130 LM/W | ||||||
| Correlated Color Temperature | 3000K,4000K,5000K,5700K | ||||||
| Color Rendering Index | >80 | ||||||
Light distribution
Installation
INSTALLATION FOR HANGIN
1-Hook the V-hook with chain on the high bay
2-Hook up the chain on the ceiling anchor
3-Turn off the power,make the wire connection to the quick connector

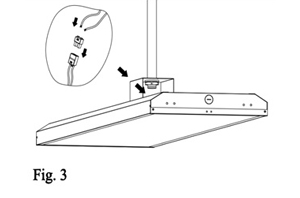

INSTALLATION FOR PIPE
1-Fix the hanging Bracket into the high bay
2-screw up the pipe into the bracket
3-Turn off the power,make the wire connection to the quick connector
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Applications
Warehouse( real pic from Halcon factory)
Gymnasiums
