Product Details
■ CONSTRUCTION
Die formed of 0.6mm cold-rolled steel body
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
High-diffusion Milky PC Diffuser
Wiring access available in the back of the housing■ LABELS
CE & ETL Listed, approved for dry/damp location otherwise noted
■ ELECTRICAL
All electrical components are VDE approved, Input Voltage: 220-240V/50HZ
Bridgelux/Hongli SMD2835 LED chips
220-240V/50HZ Osram/Phillip/Tridonic/ Lifud CE LED Driver
5 years Warranty■ OPTIONS
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
◪ CE,ETL & DLC listed; With LM79 & LM80;
◪ 2ft,18W,25W; 4ft,25W,40W;
◪ High luminous efficacy 110 LM/W
◪ 50,000 hours warranty 220-240V/50HZ,120-277V 0-10V Dimmable Osram/Phillip/Tridonic/ Lifud LED Driver
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;
◪ Installation: chain mounting
◪ Suitablefor dry/damp location;
◪ Designed for office,school, shops,hospital and conference room
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years

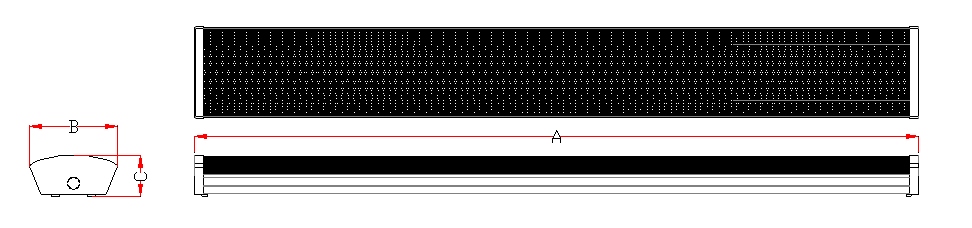

| Model No | A | B | C | Watts |
| C1801-18W/2ft | 23.03" | 5.75" | 2.67" | 18W |
| C1801-25W/2ft | 23.03" | 5.75" | 2.67" | 25W |
| C1801-25W/4ft | 46.65" | 5.75" | 2.67" | 25W |
| C1801-40W/4ft | 46.65" | 8.18" | 2.75" | 40W |
