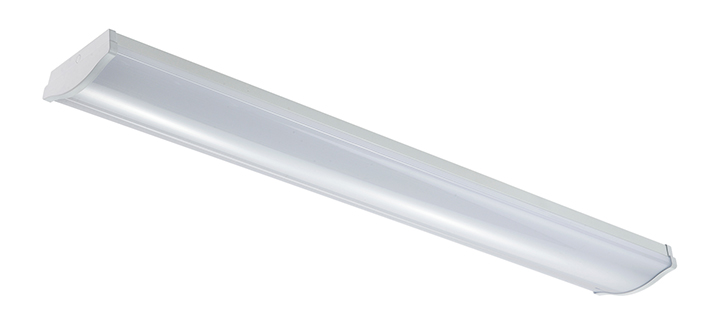

Product Details
■ MATERIAL
Die formed of 0.6mm cold-rolled steel body
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
High-diffusion Milky PC Diffuser
Wiring access available in the back of the housing■ LABELS
CE & ETL Listed, approved for dry/damp location unless otherwise noted
■ ELECTRICAL
All electrical components are VDE approved, Input Voltage: 220-240V/50HZ
Bridgelux/Hongli SMD2835 LED chips
220-240V/50HZ Osram/Phillip/Tridonic/ Lifud CE LED Driver
5 years Warranty■ OPTIONS
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
Product features
◪ CE,ETL & DLC listed; With LM79 & LM80;
◪ 2ft,20W; 4ft,20W,40W; 5ft: 30W, 60W; 6ft: 40W,80W
◪ High luminous efficacy 110 LM/W
◪ 50,000 hours warranty 220-240V/50HZ Osram/Phillip/Tridonic/ Lifud CE LED Driver
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;
◪ Installation: chain mounting
◪ Suitablefor dry/damp location;
◪ Designed for office,school, shops,hospital and conference room
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years

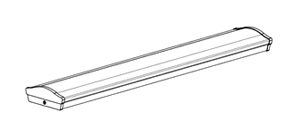

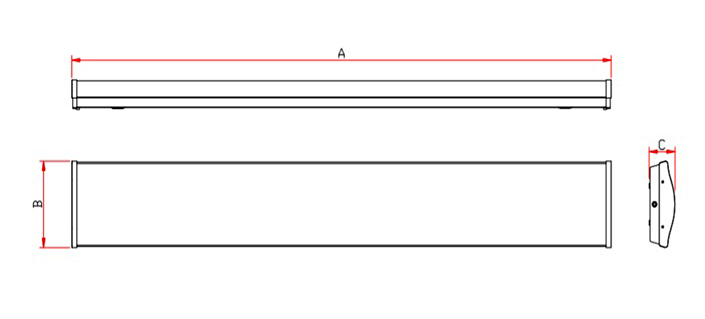

Product dimension
| Model No | A | B | C | Watts |
| HG-L201-20W/2ft | 23.62" | 8.18" | 2.75" | 20W |
| HG-L201-20W/4ft | 47.2" | 8.18" | 2.75" | 20W |
| HG-L201-40W/4ft | 47.2" | 8.18" | 2.75" | 40W |
| HG-L201-30W/5ft | 59.05" | 8.18" | 2.75" | 30W |
| HG-L201-60W/5ft | 59.05" | 8.18" | 2.75" | 60W |
| HG-L201-40W/6ft | 70.86" | 8.18" | 2.75" | 40W |
| HG-L201-80W/6ft | 70.86" | 8.18" | 2.75" | 80W |
Technical data
| Total Input Watt | 20W | 20W | 40W | 30W | 60W | 40W | 80W |
| Size | 2ft | 4ft | 4ft | 5ft | 5ft | 6ft | 6ft |
| Calculated L70 | 50,000 hrs | ||||||
| Delivered Lumens | 2200 LM | 2200 LM | 4400 LM | 3300 LM | 6600 LM | 4400 LM | 8800 LM |
| Luminaire Efficacy Rating | 110 LM/W | ||||||
| Correlated Color Temperature | 3000K,3500K,4000K,4500K,5000K | ||||||
| Color Rendering Index | >80 | ||||||

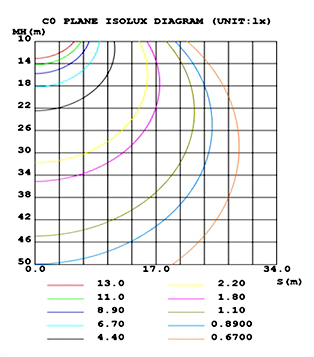

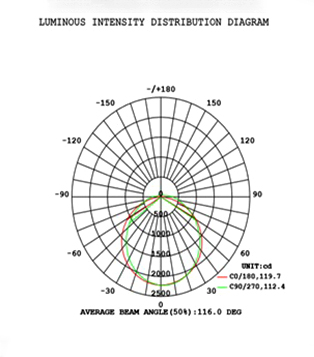

Light distribution
Installation for recessed

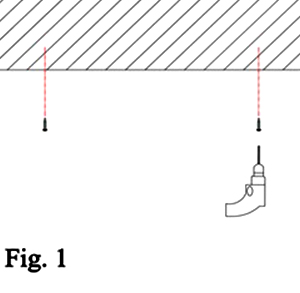

1-Drill the holes into the ceiling

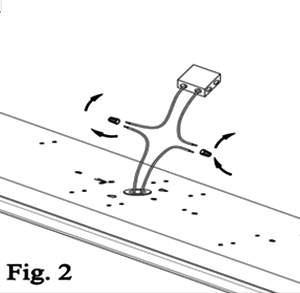

2-Turn off the power,make the wire connection to the quick connector.
3-Fix the Light into the mounting holes
4-Make sure the light fixing well into the ceiling.

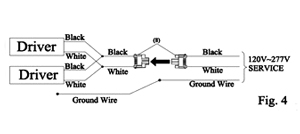

5-The wire connection diagram
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1

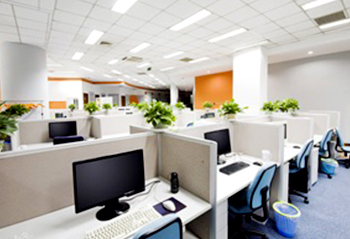

Applications

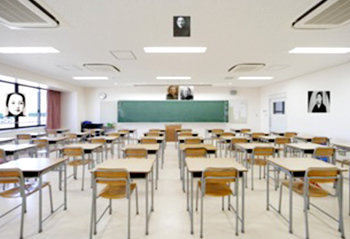

School/Class Room

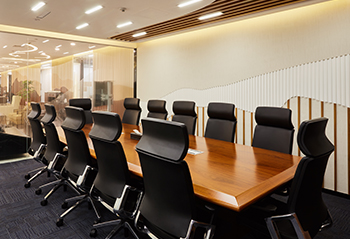

Meeting Room

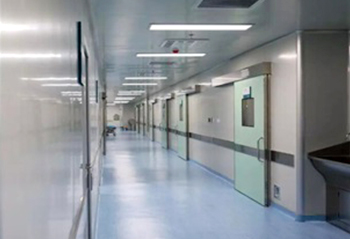

Hospital
