Product Details

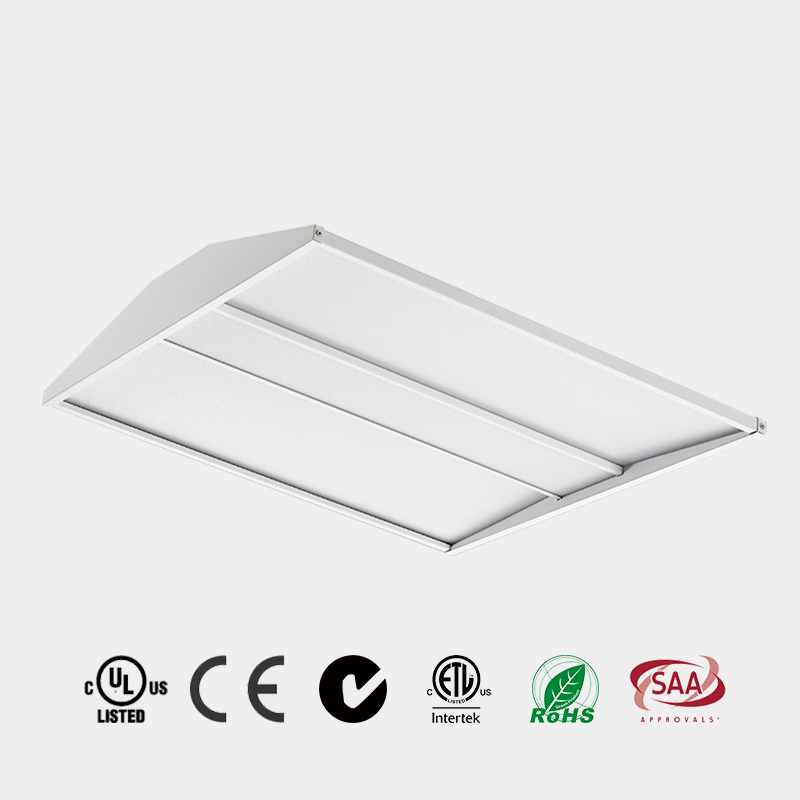

■ CONSTRUCTION
Die formed of 0.6mm cold-rolled steel body
All steel surface are painted after fabrication with high gloss backed white matte powder painted.
High-diffusion light-milky PC diffuser
Fully recessed luminaire fits standard T-Grid ceilings.■ LABELS
CE & ETL Listed, approved for dry/damp location unless otherwise noted
■ ELECTRICAL
All electrical components are UL approved, Input Voltage from 100-277V
Bridgelux SMD2835 LED chips
120-277V UL/CUL 0-10V LED Driver
5 years Warranty■ OPTIONS
1-Available for dimmable version
2-Available for emergency version
3-Available for installing with sensor
Product features
◪ ETL & DLC listed; With LM79 & LM80;
◪ 2'x2':27W,36W / 2'x4': 40W,50W / 1'x4': 40W
◪ High luminous efficacy 125 lm/w;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;
◪ Installation: chain mounting
◪ Suitablefor dry/damp location;
◪ Designed for office, conference room
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years
Product dimension
| Model No | A | B | C | Watts |
| HG-L254/DM-XY | 23.8" | 23.8" | 3.15" | 27W |
| HG-L254/DM-X | 23.8" | 23.8" | 3.15" | 36W |
| HG-L254/DM-XX | 47.6" | 12.8" | 3.15" | 40W |
| HG-L254/DM-XXY | 47.6" | 23.8" | 3.15 | 40W |
| HG-L254/DM-XXX | 47.6" | 23.8" | 3.15 | 50W |
Technical data
| Total Input Watt | 27W | 36W | 40W | 40W | 50W |
| Size | 2'x2' | 2'x2' | 1'x4' | 2'x4' | 2'x4' |
| Calculated L70 | 50,000 hrs | ||||
| Delivered Lumens | 3375 lm | 4500 lm | 5000 lm | 5000 lm | 6250 lm |
| Luminaire Efficacy Rating | 125 LM/W | ||||
| Correlated Color Temperature | 3000K,4000K,5000K | ||||
| Color Rendering Index | >80 | ||||
Light distribution
Installation
INSTALLATION FOR RECESSED
1-Drill the holes in the wooden ceiling.
2-Turn off the power,make the wire connection to the quick connector.

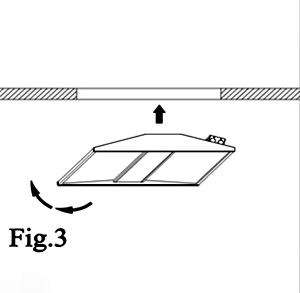

3-Turn the light into the opening ceiling.
4-Make sure the light sitting down well to the ceiling frame.
5-The lights sit well on the ceiling frame.
6-The wire connection diagram
INSTALLATION FOR HANGING
1-Drill the holes in the wooden ceiling;
And install the hanging ring into the ceiling.
2-Use a screwdriver to straighten the hanging tabs.
3-Install the Hook or stainless coabe into the hanging tab.
4-Lock the chain/stainess wire into the installed ring or mounting bracket.
5-Turn off the power,make the wire connection to the quick connector.
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Applications
Conference Room
