Product Details
■ OFFICE/ ARCHTECTRUAL/ SCHOOL/DISPLAY CENTRES
it contributes to comfortable, healthy workplaces by lighting the task, face and space.
It produces soft, 360° light with no visible LEDs.
To complete the range, the recessed version is now joined by IQ Wave surface and suspended.
Available in 1200 mm and 1500 mm, they can be joined together in a continuous line, to create a sleek look.
It is available with lumen packages ranging from 2600 lm to 6700 lm, in colour temperatures of 3000K or 4000K
The IP40 rating offers extra protection for school applications.
The special optical design achieves high efficacy, and even more energy can be saved thanks to control options
including presence/absence detection and daylight dimming
■ CONTROLS
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.■ DIMMING
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.■ FINISHES
Standard fixture is anodized on surface
◪ ETL & DLC listed; With LM79 & LM80;
◪ 4ft: 40W
◪ High luminous efficacy 120 LM/W;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF>0.90
◪ driver efficiency>87%;THD<20%;
◪ Installation: Suspended,Flush mount.
◪ Suitablefor dry/damp location;
◪ Designed for office/ architectrual/ school/ display centres
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386231439449.jpg)
Model No | L | W | H |
HG-L246-40W | 1174mm | 67mm | 75mm |
46.2 inch | 2.64 inch | 2.95 inch | |
HG-L246-50W | 1174mm | 67mm | 75mm |
46.2 inch | 2.64 inch | 2.95 inch |
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386246891006.jpg)

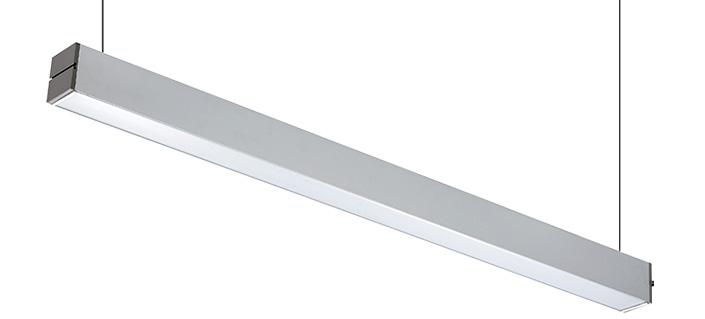

Total Input Watt | 40W/4ft | 50W/4ft | ||||
SMD LED Chips Brand | Bridgelux | |||||
Calculated L70 | 50,000 hrs | |||||
Delivered Lumens | 4400 LM | 5500 LM | ||||
Luminaire Efficacy Rating | 110 LM/W | |||||
Correlated Color Temperature | 3000K,4000K,5000K | |||||
Color Rendering Index | >80 |
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386223712919.jpg)
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386223884026.jpg)
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386228524335.jpg)
1-Fix the cooper nut into the ceiling by screw
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386228611786.jpg)
2-lock the stainess wire into the cooper nut.
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386228684546.jpg)
3-Turn off the power,make the wire connection to the quick connector
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386228775634.jpg)
1-Fix the mounting holes into the ceiling by screw
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386228854449.jpg)
2-lock the stainess bracket into the holes.
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386228927339.jpg)
3-Snap in the lights into the mounting bracket
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386230108234.jpg)
![](https://img4682.weyesimg.com/uploads/ba0885a1.allweyes.com/images/15386230175228.jpg)
