Product Details
CS-864/B Medium-intensity aviation light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions between 105m and 150m to air traffic with a flashing white safety light. Flashing white light in day mode to present the obstruction. Optional multi lamp flashing using GPS synchronization or control panel.
Product Specifications
| Light intensity | 2,000cd ±25%(Night), 20,000cd ±25%(Daytime) |
| Operation mode | Flashing 40-60 fpm |
| Light source | LED |
| Service life of LED | ≥100,000hours |
| Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
| Power consumption | 20W(Night), 60W(Daytime) |
| Overall size(mm) | φ228 by 186 |
| Mounting size | 160 by 160 by 193 |
| Vertical Beam Spread | 3° minimum |
| Horizontal degree | 360° |
| Material | Housing: PC, Base: die casting aluminum |
| Weight | 3Kg |
| Emitting color | White |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
Product Features
◆ ICAO Certified.
◆ IP65 waterproof rating.
◆ Long life LED light source.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV protection.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Built-in circuit protect LED, extremely reliable and cost saving.
◆ Integrated design with built-in photocell.
Product Dimension
Production Process

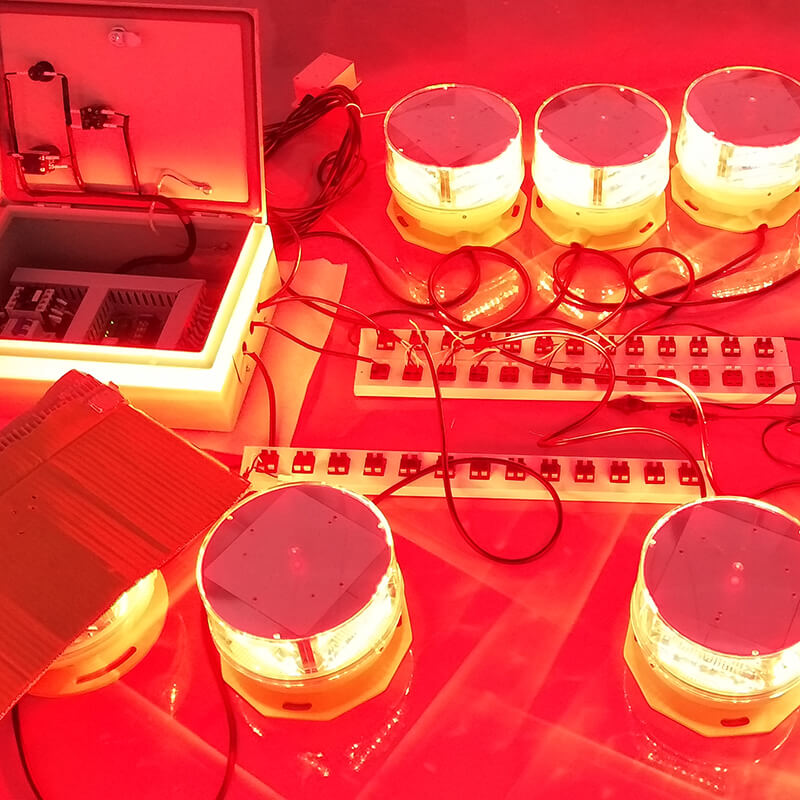

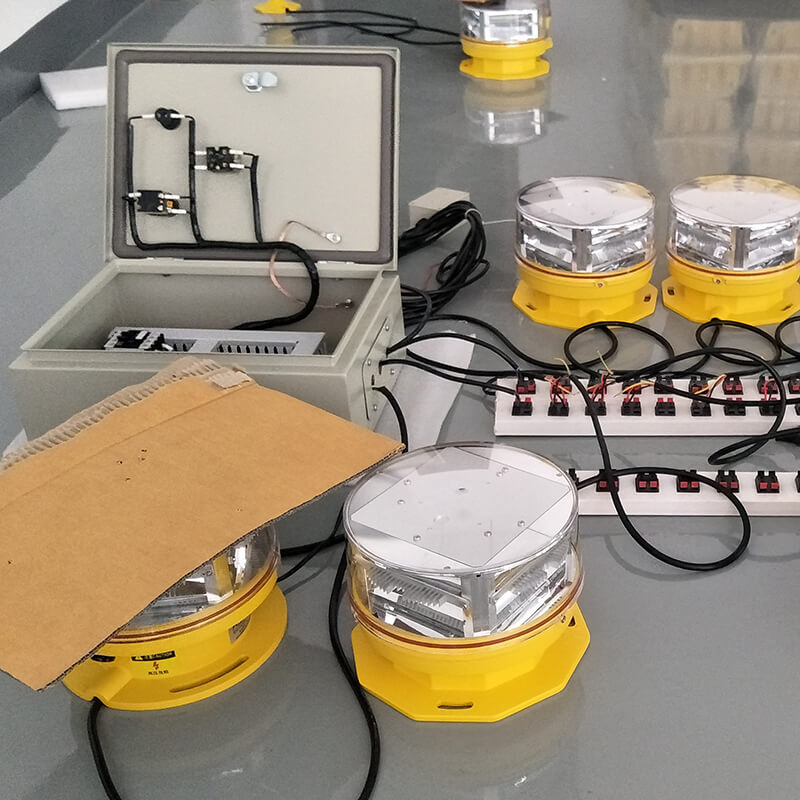

Aging Test
Aging Test of LED based medium intensity type A aviation light
Aging Test
Aging Test of medium intensity white flash bacon light
