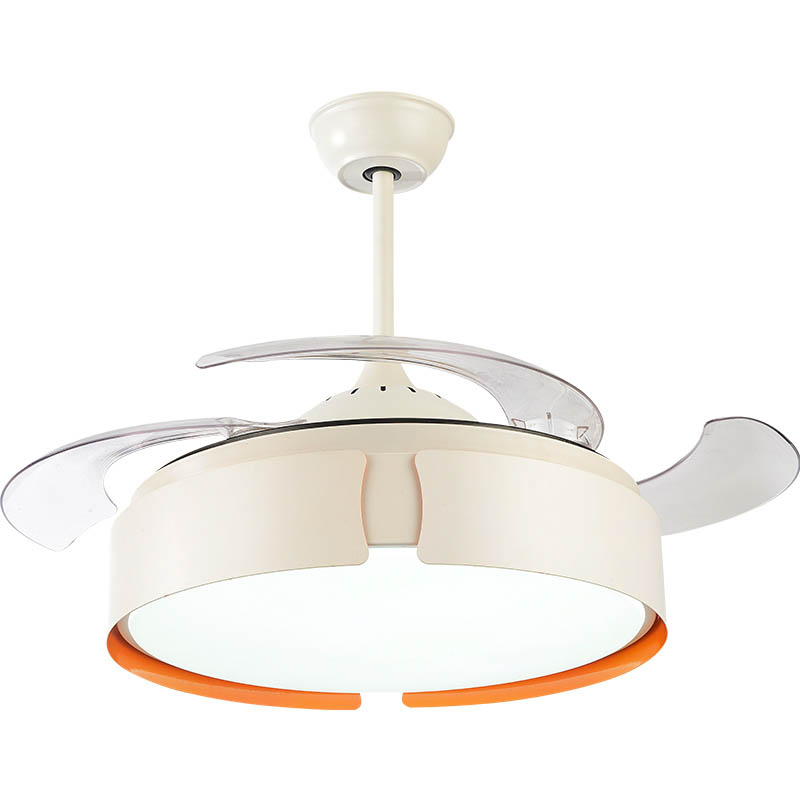

Modern invisible style fan lamp, 4 pieces of white ABS plastic fan blades model HJ3294

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Zhongshan

  • Categories:Indoor Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:46

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Zhongshan

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

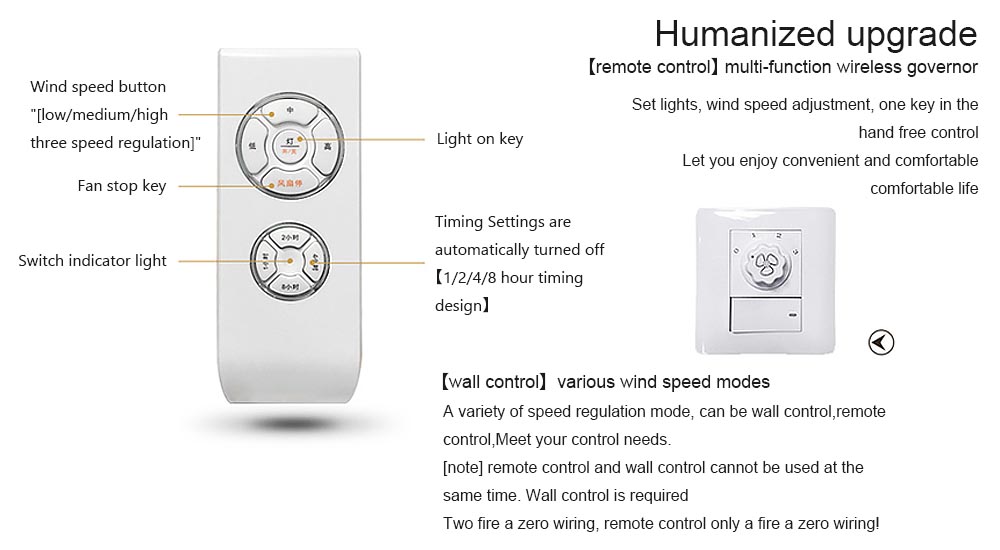

Instructions for remote control/wall control lighting
Multi-function speed regulation mode, timing and fixed-speed light control





Product parameters


Brand

zhengs' Royal

Material

Double lacquer pure copper silicon steel hardware, ABS plastic

Model

HJ3294

Color

White

Fuselage size

43cm*108cm

Using area

8~20 square meters

Blade size

36"  42"

Usage scenarios

Bedroom, living room, dining room, hotel, office

Control mode

Wall control remote control, wall remote control

Product process

Polishing, polishing, painting, electroplating

Certification

3C   CE   CB

Transport

Protocol to transport

Order quantity

100

Template

Freight charge, sample order reduction free




advantage and disadvantage


Control mode


Wall control

Remote control

Advantages

Affordable and durable, can be in a
fixed positionSpeed regulation,
control lights on and off

Speed regulation and turn on and off lights,
with the function of timing off,Remote control
can walk with people, easy to control

Disadvantages

 It takes 2 fires and 1 zero wiring to install
Need to speed up to a fixed position
and turn on and off lights

Durability, stability is not as good as wall control
It's more expensive

Pull rope, remote
control, wall control
The relationship between

1. Remote control and wall control cannot be installed at the same time!
2. Remote control and wall control can be Shared, but it is not recommended to use at the same time, so as to avoid manufacturing gear confusion.

Special remind

1.The ceiling fan light of this brand is only recommended to be remote-controlled by this brand.
Damage caused by wall control and remote-controlled by other brands is not includedWarranty
coverage. Ceiling fan wall control is capacitive, not variable speed wall control and resistance wall control
Will damage the motor and noise situation!
2. Ceiling fan lamp is controlled by wall control, remote control and rope pulling control.
Different styles are equipped with different control modes





installation basic requirements


Floor height is greater than or equal to 2.6?
Ceiling load is greater than or equal to 40KG

Installation diagram

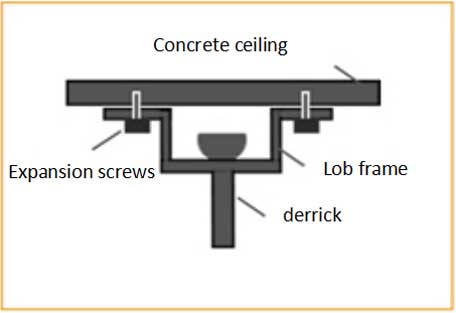

A standard installation

The diagram shows the standard configuration (hoisting installation), simpleConvenient way to install if you are a new house specializing in repair The installation location does not do decorative ceiling, this is the defaultInstallation method.

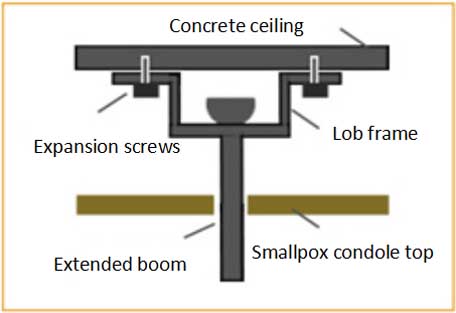

There is a ceiling installation

The graph is to have adornment smallpox condole carries the top should condole installs ahead of scheduleInstall on cement board, hanger rod and electric wire are exposed install Act the role of ceiling horizontal line, lengthen derrick as the case may be, longDegree depends on the height of the floor, can consult customer service. Note: the fan blade distance from the ceiling should be more than 25cm. Otherwise it will affect the wind force.

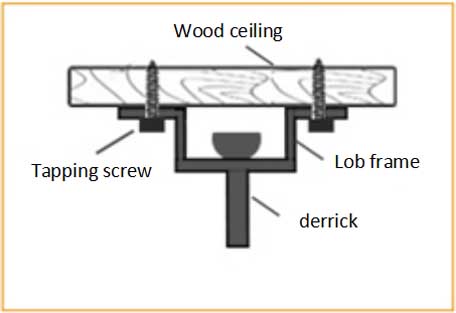

Decorative ceiling (wood)

The figure shows the ceiling with formwork and the installation positionIt must be reinforced to bear a weight of 40 kilograms for liftingPosition template thickness is not less than 30mm, decorationRemind the master to strengthen and thicken in this position.




Product Description



Silicon steel motor
Pure copper winding motor, selected silicon steel, double roll silent bearing running stable, high efficiency and energy saving

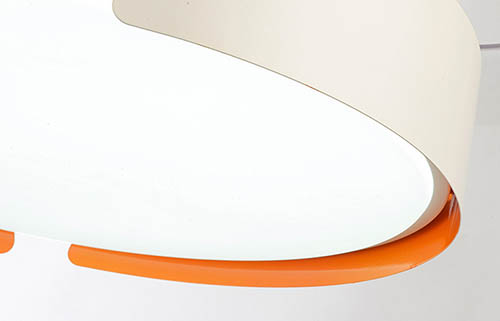

Thicken acrylic lampshade
Acrylic lampshade with iron frame, simple appearance force modeling, iron frame

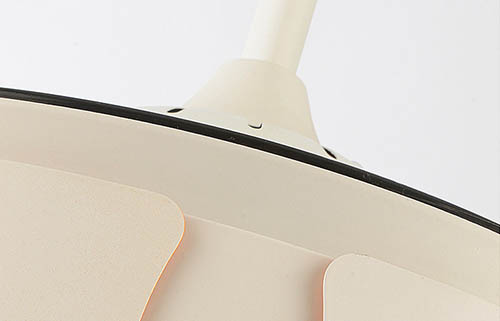

Fan blade circulates air
ABS invisible fan blade is selected. The surface is smooth, transparent and retractableHeat resistant and flame retardant, strong wear-resisting, uniform air supply, comfortable and cool




5 large combination




After-sale service


  ◪   Uy a machine to be able to enjoy freely in zheng shi royal

  ◪   Don't fix the broken one, just replace it with a new one!

  ◪   Ceiling fan lamp motor as long as there is no normal use of the function of damage, zheng royal directly for the new motor!

  ◪   The service is effective within one year after purchase! (the motor warranty guarantee for ten years is effective at the same time!)




Precautions for installation


To avoid fire and electric shock, please read the following items carefully:
1. Qualified personnel with experience in installation and wiring must refer to various standard procedures and instructions for operation.
2. When installing or wiring, the switch must be turned off, and no live operation is allowed.
3. Read the instructions and all kinds of use materials in detail before installing ceiling fans. If you are not sure, please contact the customer service in time.
4. Do not damage other concealed facilities of electric wires when drilling or drilling in the wall.
5. In the installation environment you choose, when the fan blade rotates, it shall not touch any obstacles, from the outer edge of the blade to the ground at least Should leave the interval of 2.2 meters, arrive at metope at least 0.6 meters.
The ceiling that hangs condole fan or beam and the screw that fix condole fan, must be able to bear 60 kilograms 72 hours hind do not loosen do not fall off Of pull force, ability assures condole fan to run when be at ease and reliable.
7. Do not bend the fan blade fork when installing the ceiling fan for shake correction or cleaning.
8. Do not install ceiling fans or switches in the bathroom or in places where showers can damp you. Unless purchase is to have waterproof condole fan.
9. Do not install any additional solid-state circuit or speed regulator or other devices in the ceiling fan system, except with the permission of the owner.
