Product Details

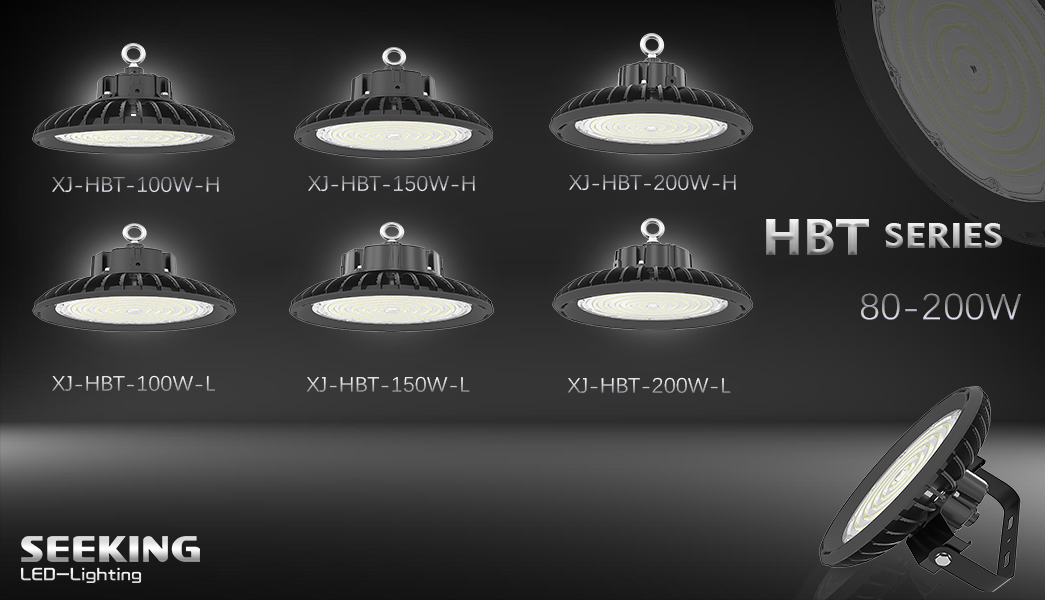

MM deisgn--Power,efficiency maximum,lamp volume Minimum.fins cooling and more led chips keep XJ-HBT always work in a high efficiency.various lens and bracket make it can fit any industry application.Also, the MM design makes XJ-HBT the most cost-effective.
◆ PRODUCT PARAMETER
| Data Specifications | HBT-L series | ||
| Power | 80W/100W | 130W/150W | 180W/200W |
| Input Voltage | AC90-305V 50/60Hz | ||
| Output Voltage | DC45-47V | ||
| color temperature | 2800-3200 /4000-4500 /5500-6000K | ||
| CRI | Ra>70 & Ra>80 | ||
| Average Beam angle(50%) | 60°/90° | ||
| Light Efficiency | whole lamp output 155lm/w | whole lamp output 155lm/w | whole lamp output 155lm/w |
| Lumens | 80W：12400lm； 100W：15500lm | 130W：20150lm； 150W：23250lm | 180W：27900lm； 200W：31000lm |
| LED | 208 ( Tiandian 2835) pcs | 320 ( Tiandian 2835) pcs | 440 ( Tiandian 2835) pcs |
| Driver | 100W(SOSEN) | 150W(SOSEN) | 200W(SOSEN) |
| UGR | 20 | ||
| Power Factor(Typ) | ≥0.95 | ||
| Operating Temperature | （-40～60 ℃）(Lowest operation temp -40°C, and highest 60°C) | ||
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain | ||
| Life Span | 50000Hrs (L70B50>50,000hrs) | ||
| Main Materials | Aluminum, LED,Plastic | ||
| Operating Humidity | 20%～90% | ||
| Storage Temperature | (-40～80 ℃) | ||
| Lumen Maintenance | >85%（5000Hrs） | ||
| Others | |||
| Replace Traditional lamp | 80W≥200W ；100W≥250W(HPS ,MH, HID) | 130W≥325W； 150W≥375W(HPS ,MH, HID) | 180W≥450W； 200W≥500W(HPS ,MH, HID) |
| Energy Saving | 60% | ||
| Lux on 5 meter | 80W=320.6lx；100W=402lx (lux at ground from 5m high) | 130W=894.5lx；150W=972.9lx (lux at ground from 5m high) | 180W=957.8lx；200W=1045lx (lux at ground from 5m high) |
| Lux on 10 meter | 80W=80.15lx；100W=100.5lx (lux at ground from 10m high) | 130W=223.6lx；150W=243.2 l(lux at ground from 10m high) | 180W=239.4lx；200W=261.2l x(lux at ground from 10m high) |
| Temperature on housing Max | 80W=59.4 °C；100W=61.4°C （Test environment temperature 25 °C） | 130W=68.7 °C；150W=70.7 °C （Test environment temperature 25 °C） | 180W=75.7 °C；200W=76.8 °C （Test environment temperature 25 °C） |
| Temperature on LED Max | 80W=61.9 °C；100W=64.9 °C （Test environment temperature 25 °C） | 130W=83.4 °C；150W=83.4 °C （Test environment temperature 25 °C） | 180W=78.8°C；200W=79.8 ° C（Test environment temperature 25 °C） |
| Temperature on Driver Max | 80W=51.4 °C；100W=55.4°C （Test environment temperature 25 °C） | 130W=61 °C；150W=64 °C （Test environment temperature 25 °C） | 180W=64.6 °C；200W=67.6 °C （Test environment temperature 25 °C） |
| Net weight | 2.5 Kgs (without package) | 3 Kgs (without package) | 3.5 Kgs (without package) |
| Gross Weight(Kgs) | 3.7 Kgs (with package) | 4.2 Kgs (with package) | 4.8 Kgs (with package) |
| Package Size | 345x345x210mm | 345x345x210mm | 405x405x215mm |

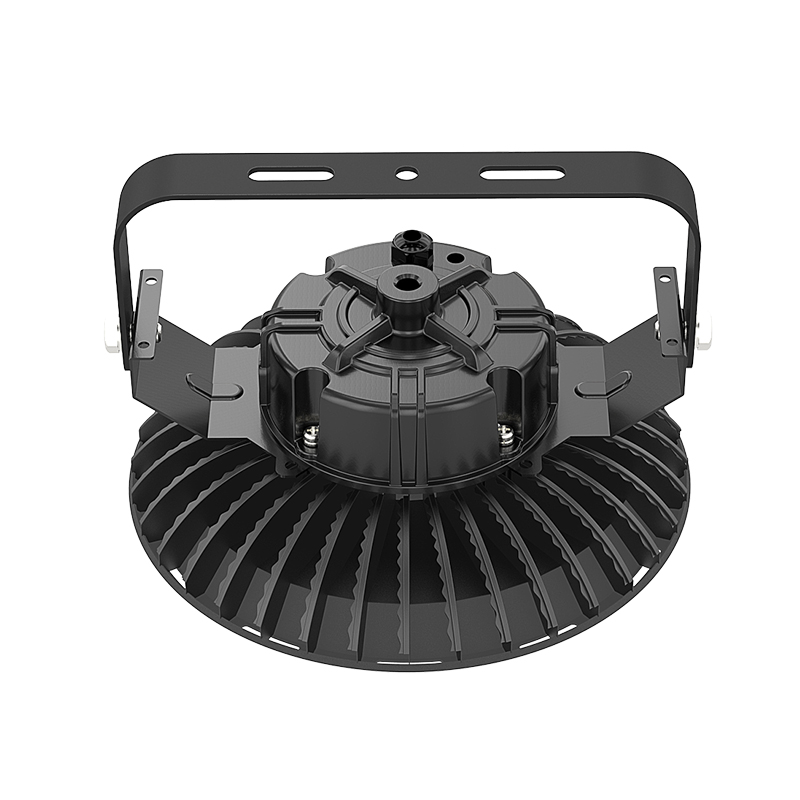

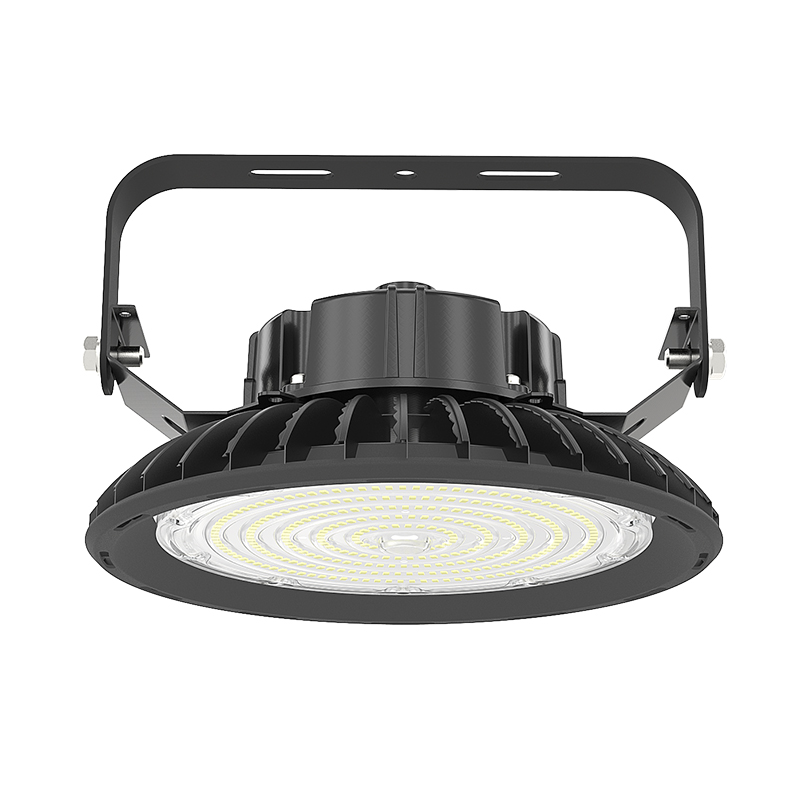

| Installations | Adjustable bracket,Hook | ||

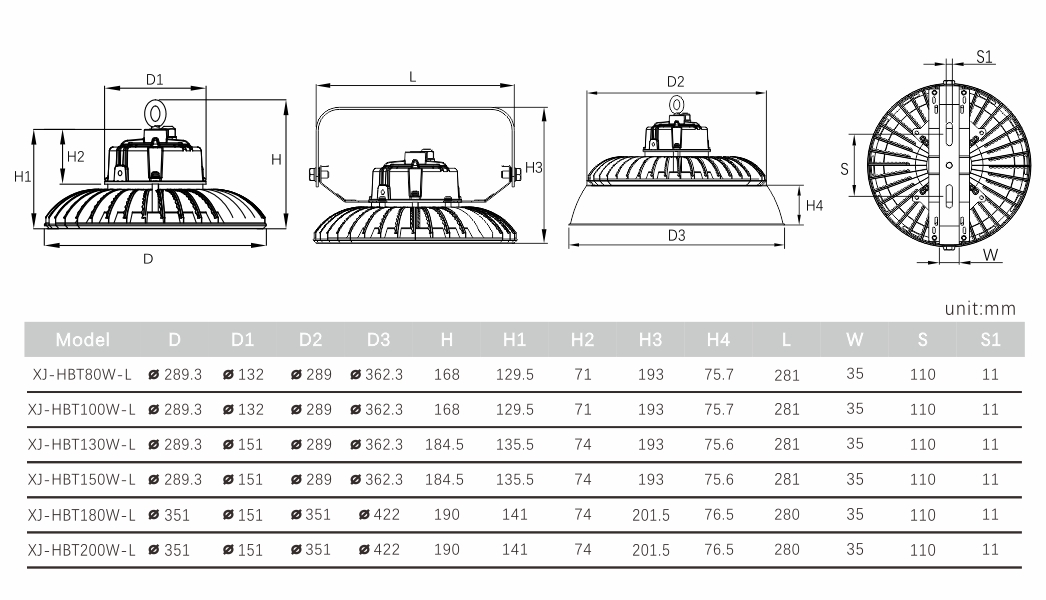

◆ PRODUCT SIZE

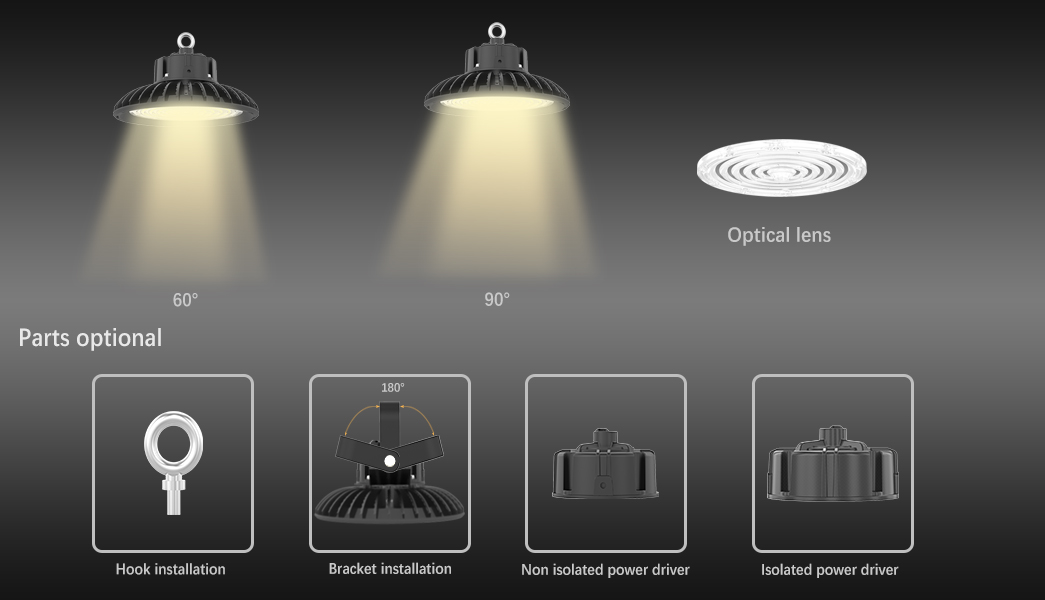

◆ PRODUCT DETAILS
◆ PRODUCT EXPLOSIVE VIEW

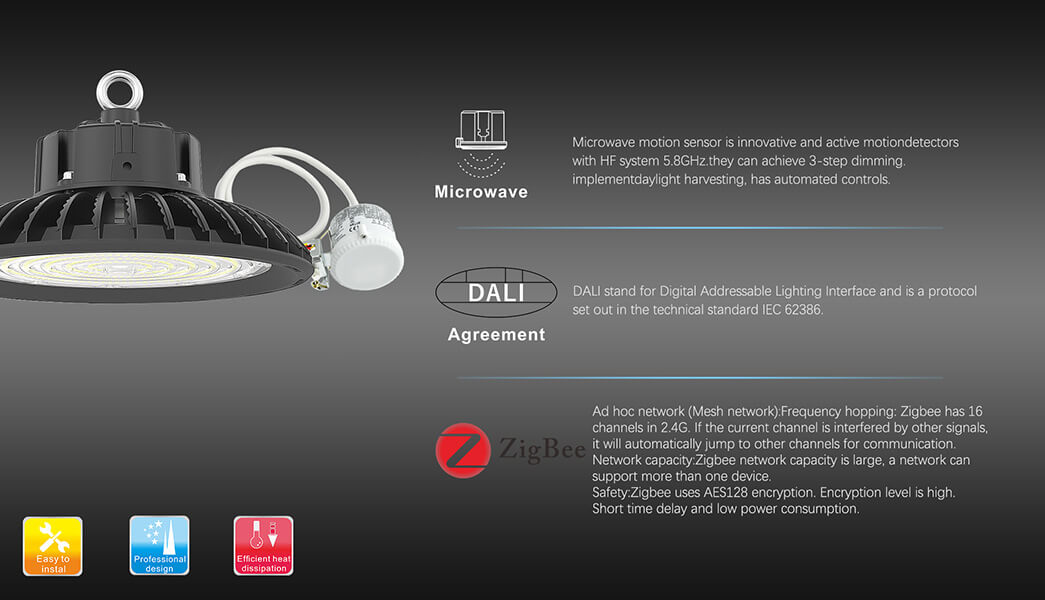

◆ PRODUCT FUNCTION APPLICATION

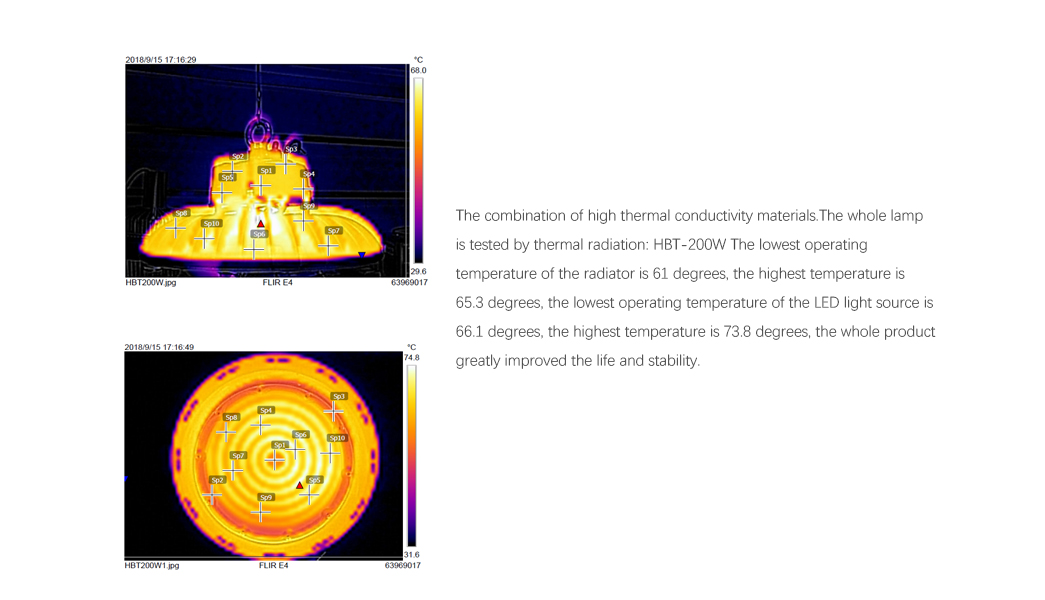

◆ THERMAL PRESENATION
◆ FREE LIGHTING DESIGN
SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
