Product Details
- Type:
- $key1$
- Certification:
- ETL DLC
- Model Number:
- HG-L225
- Working Temperature(℃):
- -25-55
- Working Lifetime(Hour):
- 50000
- Beam Angle(°):
- 106
- Input Voltage(V):
- 120-277
- Light Source:
- SMD2835
- CRI (Ra>):
- 80
- Lamp Body Material:
- Iron+PC
- IP Rating:
- IP20
- Application:
- WAREHOUSE
- Support Dimmer:
- 0-10V
- Dimension:
- 2FT 4FT
- Product:
- $key1$
- Lamp Luminous Efficiency(lm/w):
- 130
- Sensor and emergency kits:
- available
- lamp boday meterial:
- Iron sheet
- Light source:
- SMD2835
- usage:
- warehouse, factory, sport stadium,industrial use
- Output lumen:
- 21450lm
- certificate:
- ETL DLC
- Size:
- 2ft
- Power:
- 165W
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 65X36X13 cm
- Single gross weight:
- 3.5 kg
- Package Type:
- led linear high bay

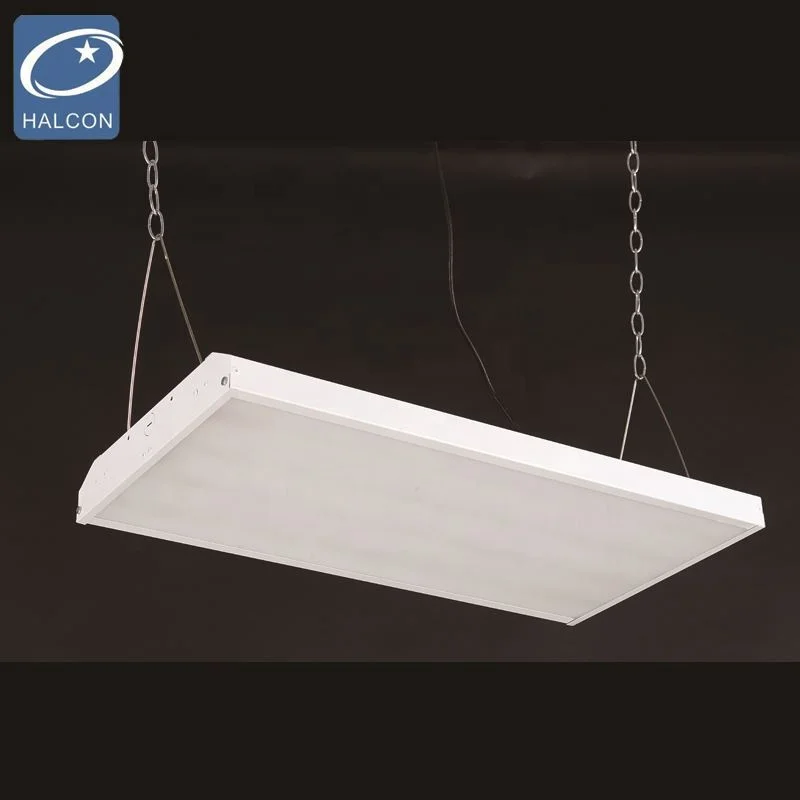

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 2 - 100 101 - 500 >500 Est. Time(days) 15 14 13 To be negotiated
$title$
| Model No | A | B | C | ||||
| HG-L225-80W/2ft | 23.82"/605mm | 2.07"/52.5mm | 12.60"/320mm | ||||
| HG-L225-100W/2ft | 23.82"/605mm | 2.07"/52.5mm | 12.60"/320mm | ||||
| HG-L225-140W/2ft | 23.82"/605mm | 2.07"/52.5mm | 17.32"/440mm | ||||
| HG-L225-165W/2ft | 23.82"/605mm | 2.07"/52.5mm | 17.32"/440mm | ||||
| HG-L225-165W/4ft | 45.87"/1165mm | 2.07"/52.5mm | 12.60"/320mm | ||||
| HG-L225-225W/4ft | 45.87"/1165mm | 2.07"/52.5mm | 12.60"/320mm | ||||
| HG-L225-320W/4ft | 45.87"/1165mm | 2.07"/52.5mm | 17.32"/440mm | ||||
ZhongShan Halcon Lighting & Electrical Co., Ltd Website: Http://www.halconlighting.com Add:No 9, ShunXing North Road, YongXing Industrial Zone, HengLan Town, ZhongShan City, GuangDong,China. Post code: 528478 Tel:0086-760-87556292 Phone:0086-13928100687 Fax:0086-760-87556294 Email: sales02@halconlighting.com
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The high bay lighting is widely used in the exhibition hall, shopping mall, warehouse, workshop, stadium, etc.
WAREHOUSES/ FACTORY/ GYMNASIUMS/DISPLAY CENTRES
- It marries our best LED technologies with our most popular high bay product.
-The result is high-performance,configurable LED luminaire.
-That is ideal for warehousing, manufacturing,and gymnasiums.
ADVANCED OPTICS
-Narrow and wide distributions available to meet both horizontal and vertical light level requirements.
-Reflectors feature precision-formed optics utilizing premium materials.
EMERGENCY BATTERY PACK
-Optional factory-installed emergency battery pack in the back plate.
-(nominal) for a minimum of 90 minutes.
CONTROLS
-Fixture can be equipped with an occupancy sensor.
-Devices are factory-installed and require minimal labor to set up during fixture installation.
DIMMING
-Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.
FINISHES
-Standard fixture is powder-coated with white color.
GLARE CONTROL
-A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed.
1. Packaging: Export carton with foam, inner box is ok with customer"s requirements.
2. Shipping: By sea, by express or you can let your forwarder to collect goods from our company.
