Product Details

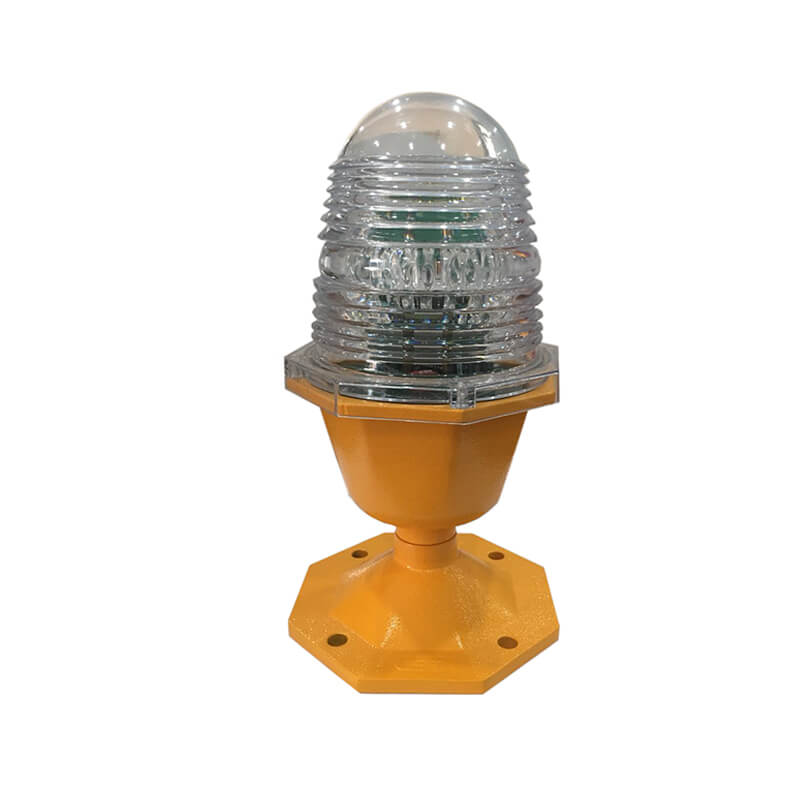

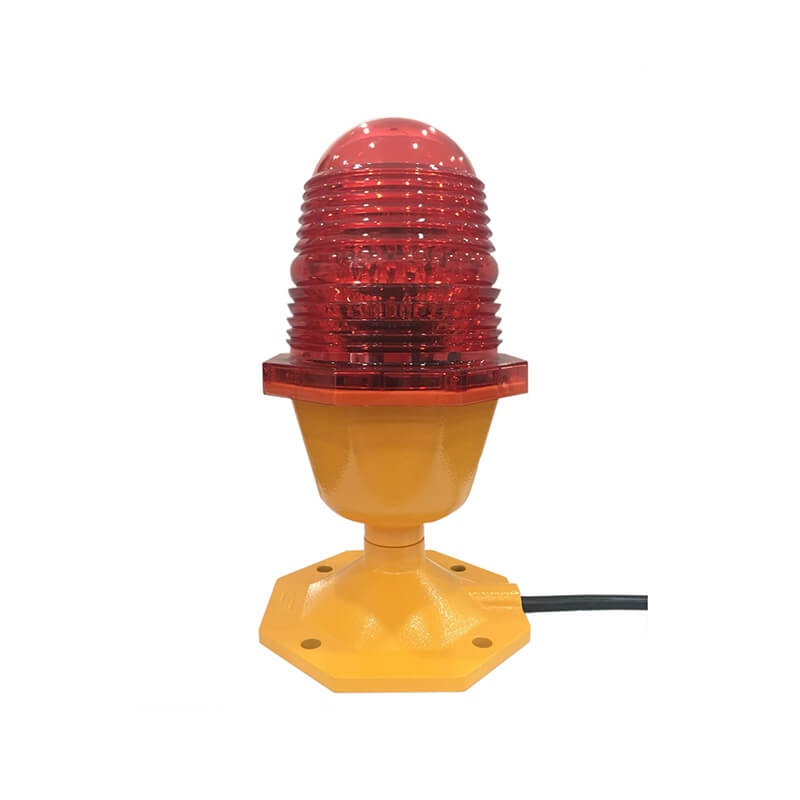

CS-810 Low-intensity obstruction light is used in Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions within 45 meters to air traffic with a steady/flashing burning red safety light. There is one switch converting between flashing mode and steady-burning mode.
Product Specifications
| Light intensity | 32cd |
| Operation mode | Steady-burning (Customized flashing ) |
| Light source | LED |
| Service life of LED | ≥100,000hours |
| Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
| Power consumption | 1W |
| Vertical degree | ≥10° |
| Horizontal degree | 360° |
| Material | Housing: PC, Base: die casting aluminum |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
| Overall size(mm) | 124 by 124 by 209 |
| Mounting size | 3/4inch |
| Weight | 1Kg |
Product Features
◆ ICAO Certificate from USA Intertek. No.:102968386CRT-001TVoC.
◆ IP65 waterproof rating.
◆ Low power consumption.
◆ Long life LED light source.
◆ Integrated design with built-in photocell.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV.
Product Dimension
Production Process
Electrical Test
Electrical Test of Low intensity aviation light
Aging Test
Aging Test of Low intensity single obstruction light
Case
ICAO Low intensity Obstruction light for Hong Kong TVB Television Tower
CS-810 Low-intensity Aircraft Warning are designed to outline hazardous obstructions within 45m to air traffic with a flashing red safety light. It complied with ICAO low intensity obstacle light and FAA L-810 obstacle light.
LED Aircraft Warning light for Hong Kong TVB Television Tower
ICAO Certified Low intensity Obstruction Light CS-810 are designed for marking outline hazardous obstructions within 45m to air traffic with a flashing red safety light. Equipped with advanced LED with lifetime more than 100,000 hours.
Low-intensity Aviation Light for Macao chimney
ICAO Low intensity Aviation Light CS-810 are designed for marking hazardous obstructions within 45m to air traffic with a flashing red safety light. Built-in circuit protect LED, extremely reliable and cost saving.
