Product Details

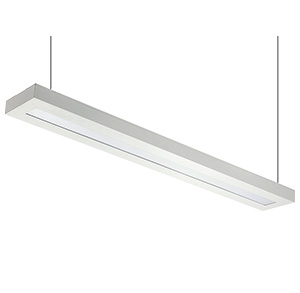

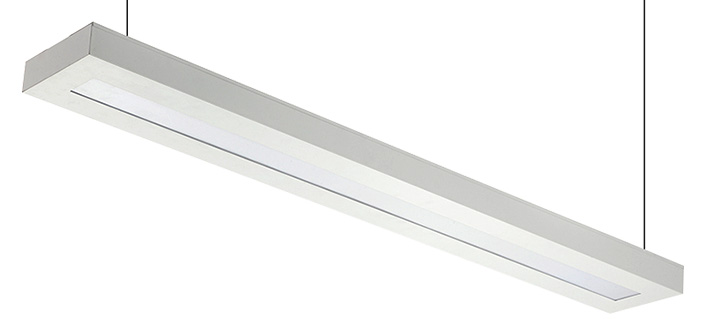

■ BODY
0.6mm Steel sheet with white powder coated.
Highly distribution of milky PC Lens
Features a direct and indirect light. with 100 degree lighting spread.
supplying 4ft and 5ft length. it can be linked together in a line.
The light efficacy is 110 LM/W
With wider body which looks very nicely.
■ OPTION
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.■ DIMMER VERSION
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.■ COLORS
Standard fixture is white color, able for black color
DETAILS
◪ ETL & DLC listed; With LM79 & LM80;
◪ 2ft:18W,25W; 4ft: 24W,36W
◪ High luminous efficacy 120 LM/W;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;
◪ Installation: Suspended,Flush mount.
◪ Suitablefor dry/damp location;

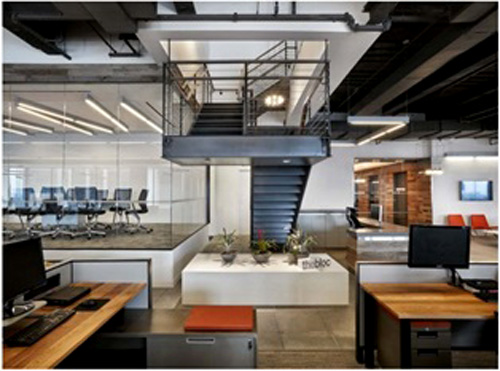

◪ Designed for office/ architectrual/ school/ display centres
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years
LAMP SIZE
| Model No | A | B | C |
| P1830-18W/2ft | 23.85" | 6.69" | 1.96" |
| P1830-25W/2ft | 23.85" | 6.69" | 1.96" |
| P1830-30W/4ft | 47.48" | 6.69" | 1.96" |
| P1830-36W/4ft | 47.48" | 6.69" | 1.96" |
ELECTRICAL INFO:
| Total Input Watt | 18W | 25W | 30W | 36W |
| SMD LED Chips Brand | 2ft | 2ft | 4ft | 4ft |
| Calculated L70 | 50,000hrs | |||
| Delivered Lumens | 1980 lm | 2750 lm | 3300 lm | 3960 lm |
| Luminaire Efficacy Rating | 110 LM/W | |||
| Correlated Color Temperature | 3000K,4000K,5000K | |||
| Color Rendering Index | >80 | |||

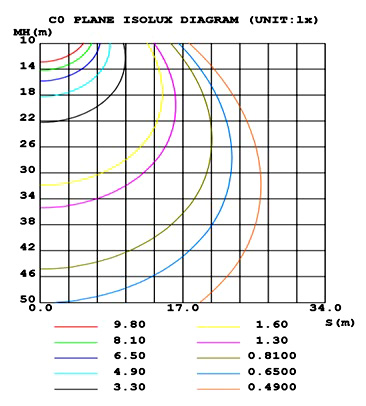

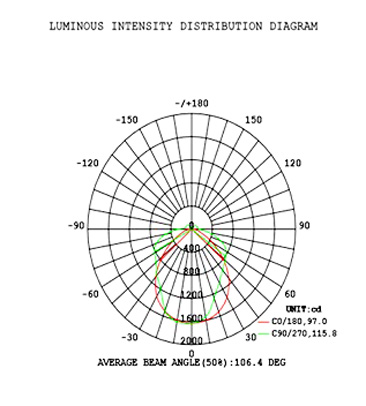

IES FILE
INSTALLING

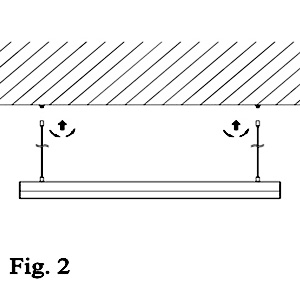

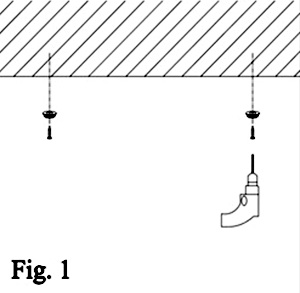

INSTALLATION FOR HANGING

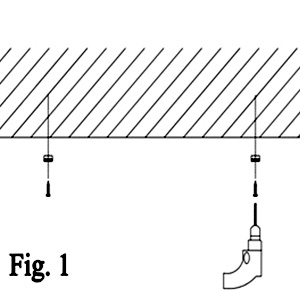

1-Fix the cooper nut into the ceiling by screw
2-lock the stainess wire into the cooper nut.

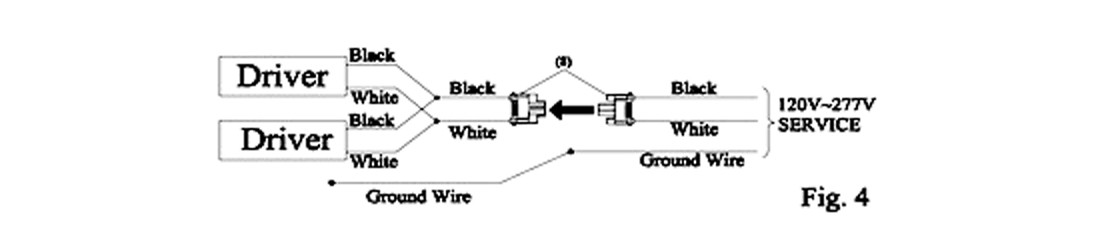

3-Turn off the power,make the wire connection to the quick connector

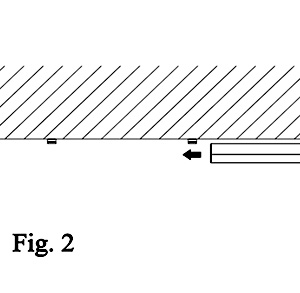

INSTALLATION FOR CEILING-MOUNTED
1-Fix the mounting holes into the ceiling by screw
2-lock the stainess bracket into the holes.
3-Snap in the lights into the mounting bracket
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Applications

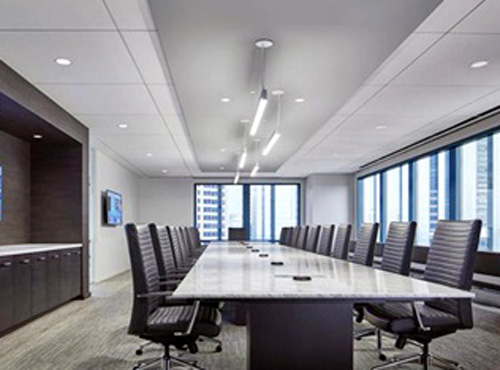

Conference Room
